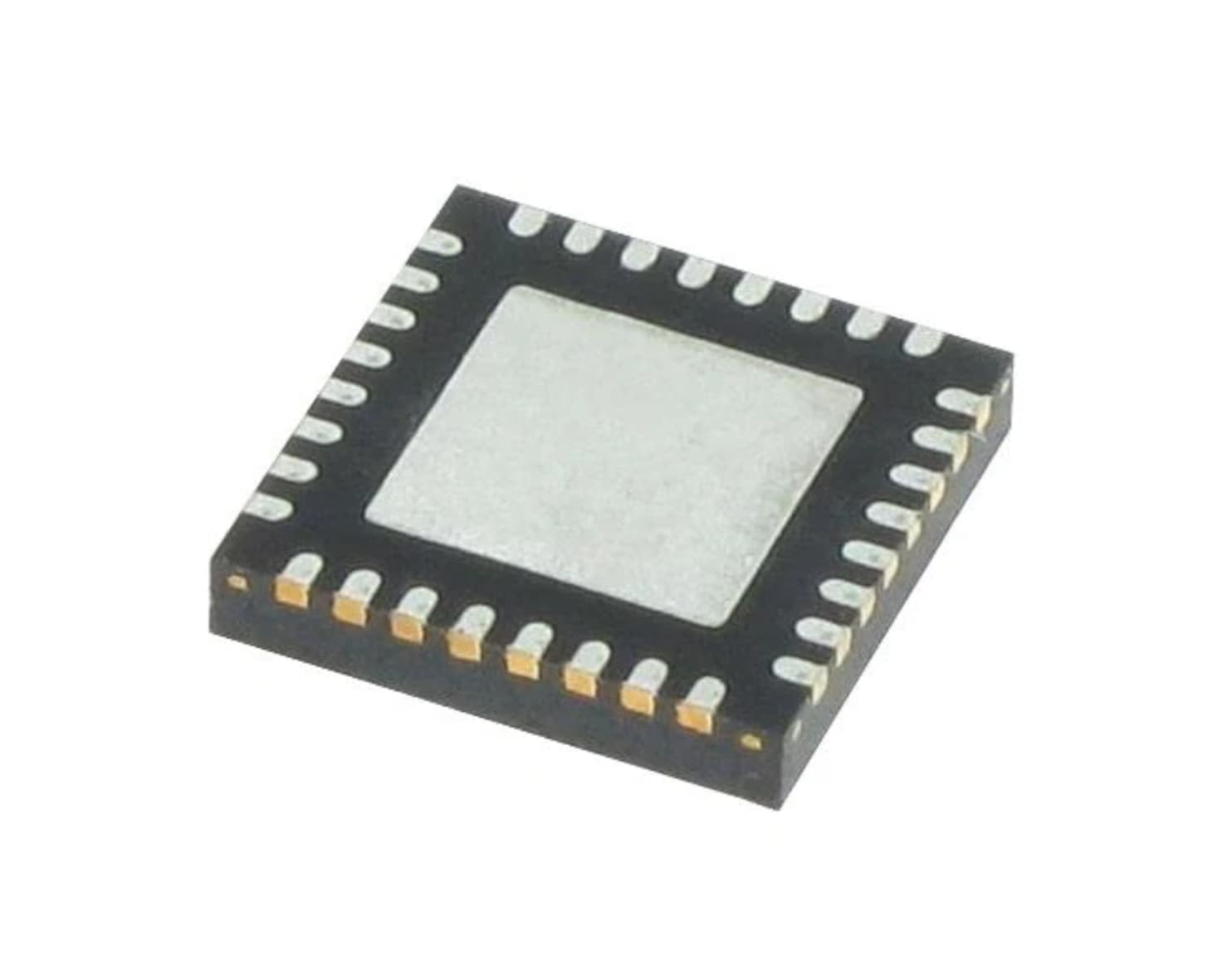

125-units min. Silicon Labs Efr32bg1b232f256gm32 Rf System On A Chip Bluetooth Low Energy - EFR32BG1B232F256GM32-C0
Slide 1 of 2
Manufacturer
Silicon Labs
MPN
EFR32BG1B232F256GM32-C0
MOQ
125
Available
0
Condition
New
Silicon Labs EFR32BG1B232F256GM32-C0 - Efr32bg1b232f256gm32 Rf System On A Chip Bluetooth Low Energy
The Silicon Labs EFR32BG1B232F256GM32-C0 is a powerful and versatile RF system on a chip (SoC) designed for Bluetooth Low Energy (BLE) applications. It offers a maximum output power of +8 dBm and a receiver sensitivity of -97 dBm, ensuring reliable and long-range communication.
This SoC also features 256 KB of flash memory and 32 KB of RAM, providing ample space for storing application code and data. It also includes a variety of peripherals, such as timers, analog-to-digital converters, and communication interfaces, making it easy to interface with external sensors and devices.
Specifications | |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.0 |
| Modulation | 2FSK, 4FSK, GFSK, GMSK, OQPSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 10.5dBm |
| Sensitivity | -94dBm |
| Memory Size | 256kB Flash, 32kB RAM |
| Serial Interfaces | I2C, I2S, SPI, UART |
| GPIO | 16 |
| Voltage - Supply | 1.85V ~ 3.8V |
| Current - Receiving | 8.7mA |
| Current - Transmitting | 8.2mA ~ 126.7mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
