Manufacturer
Ericsson
MPN
RDH10250/1
MOQ
2
Available
24
Condition
New

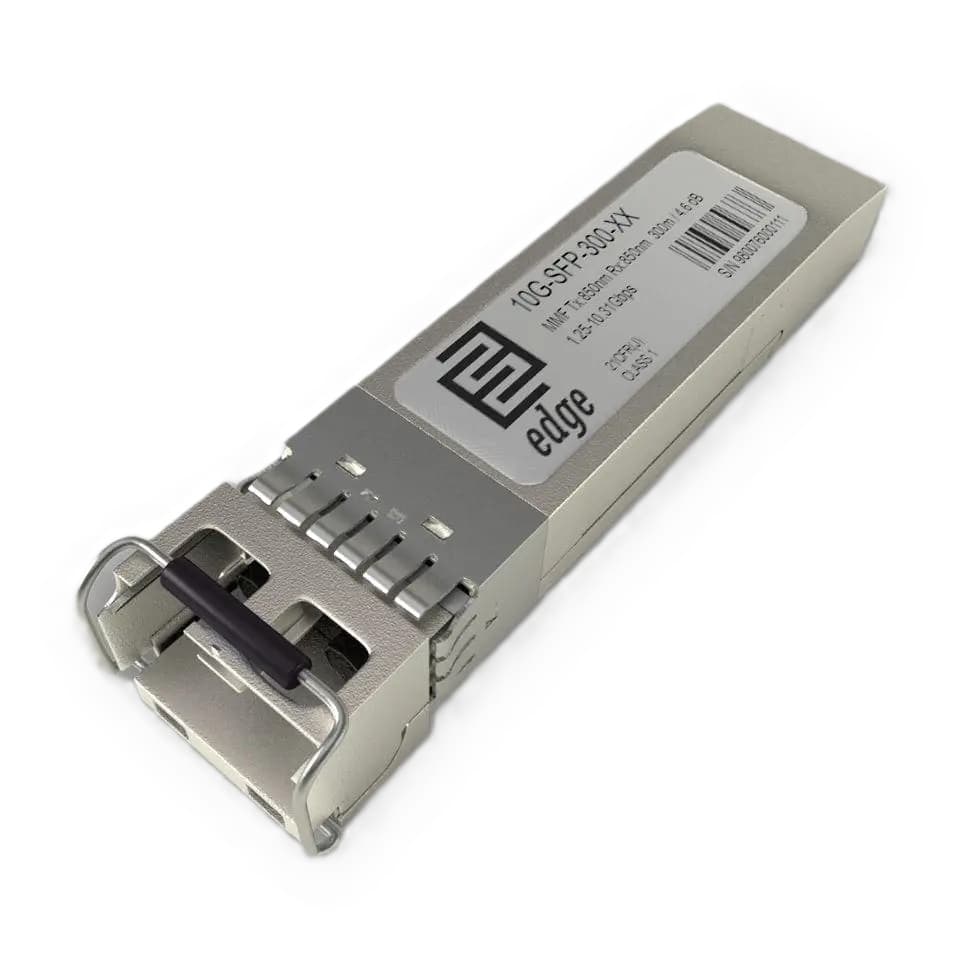

Ericsson RDH10250/1 - 10gbase-sr Mm 850nm
The Ericsson RDH10250/1 is a high-performance 10gbase-sr Mm 850nm transceiver module designed for use in data communication networks. It operates at a wavelength of 850nm and supports a data transfer rate of up to 10Gbps, providing fast and efficient data transmission.
This transceiver module is hot-pluggable, meaning it can be inserted or removed from a network device without disrupting the network. It is also compliant with the Small Form-factor Pluggable (SFP) MSA, ensuring compatibility with a wide range of networking equipment. The RDH10250/1 is equipped with LC duplex connectors, allowing for easy and secure connections to fiber optic cables.
Key Technical Data | |
|---|---|
| Media Type: | Multi-Mode Fiber (MMF) |
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 4.6 dB |
| Maximum Distance: | 300m |
| Supported Data Rate: | 1.25-10.31 Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -6.5 dB |
| Maximum Transmitting Power: | 1 dB |
| Receiver Sensitivity: | -11.1 dBm |
| Receiver Overload: | -1 dBm |
| Dispersion: | 110 ps/nm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
