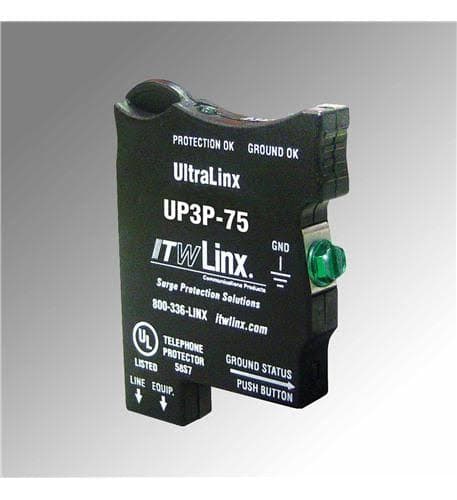

24-units min. Premier Ultralinx 66 Block Protector - 75v Clamp 160ma Ptc Indicator Lights - UP3P-75

ULTRALINX 66 BLOCK PROTECTOR - 75V CLAMP 160MA PTC INDICATOR LIGHTS

66 Block UL Secondary 75V Surge Protector UL Secondary listed with 160mA PTC for voice/fax/modem lines (75V).

Dual Indicator Lights: Protection and ground connection ok.

Single Pair Protection: Protect only the lines requiring protection. Ideal for retrofit.

Technical Specifications:

• Product Type: Surge Suppressor/Protector
•
• Weight (Approximate): 0.04 Ibs
•
• Dataline Protection: Fax/Modem
•
• Height: 2.62 inches
•
• Width: 1.88 inches
•
• Depth: 0.38 inches
•
•
• Applications:
• 1: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected.
•
• 2: Grounding Requirements: Field-installed solid copper wire
•
• 3: Recommended Grounding Impedance: <0.5 Ohm
•
• 4: Fuse Rating: 160mA (8-10 Ohms)
•
• 5: Signal Perfect Circuitry Clamping Level: 75V
•
• 6: Response Time: 1-5 Nanoseconds
•
• 7: Capacitance: <50pF
•
• 8: Termination Type: 66 M Blocks
•
•
• The PTC (Positive Temperature Coefficient) technology ensures that the protector will automatically reset after a surge, it also have indicator lights that provide visual confirmation of the protector's status.
