Manufacturer
Belden
MPN
7919A
MOQ
25
Available
0
Condition
New

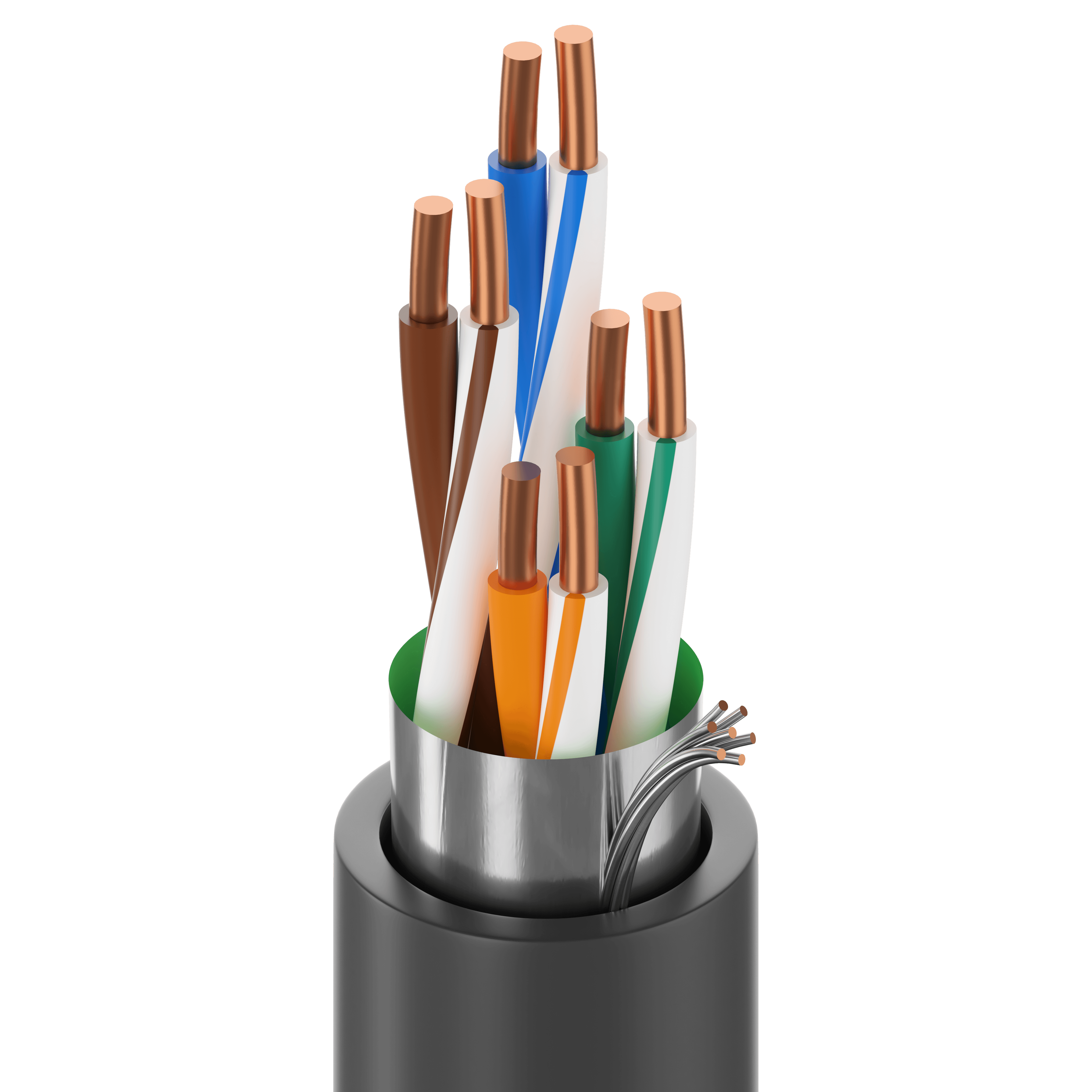

BELDEN 24AWG solid conductor, 4 pair, CAT5E cable with UV and riser rated jacket. Shielded, black jacket. Sold per foot. MSHA Approved
The Belden 7919A is a high-quality, durable communication cable designed for industrial and outdoor use. It features 24AWG (American Wire Gauge) 4-pair shielded twisted pair (STP) construction, making it ideal for applications that require reliable data transmission and protection against electromagnetic interference (EMI).
The cable is also resistant to UV rays and oil, making it suitable for use in harsh environments. It is MSHA (Mine Safety and Health Administration) approved, ensuring that it meets the safety standards for use in mining operations.
The cable is also color-coded in black for easy identification and installation. It is suitable for a wide range of applications, including data centers, manufacturing plants, and outdoor installations.
Specifications | |
| Operating Temperature Range | -40°C to +75°C |
| Conductor Material | Bare Copper |
Conductor | |
| # of Pairs | 4 |
| AWG | 24 |
| Stranding | Solid |
Insulation | |
| Insulation Material | Polyolefin |
Outer Shield | |
| Outer Shield Material | Aluminum Foil - Polyester Tape |
| Coverage | 100% |
Outer Jacket | |
| Outer Jacket Material | Industrial Grade Polyvinyl Chloride |
| Bulk Cable Weight | 30 lbs/1000 ft |
| Max Recommended Pulling Tension | 25 lbs |
| Min Bend Radius, Minor Axis | 1 in |
Electrical Characteristics | |
| Nominal Mutual Capacitance | 15 pF/ft |
| Nominal Velocity of Propagation | 70% |
| Maximum Delay | 538 ns/100m @ 100 MHz |
| Maximum Delay Skew | 45 ns/100m |
| Maximum Conductor DC Resistance | 9.38 DCR @ 20°C |
| Maximum Operating Voltage | 300 V RMS |
| Maximum DCR Unbalanced | 3 DCR @ 20°C |
| Wall Thickness | 0.010 in |
Mechanical Characteristics | |
| Installation Temperature Range | -25°C to +75°C |
| Outer Jacket Ripcord | No |
| Weight | 0.04 lbs |
