Manufacturer
Panduit Corporation
MPN
LCD814AL
MOQ
25
Available
38
Condition
New

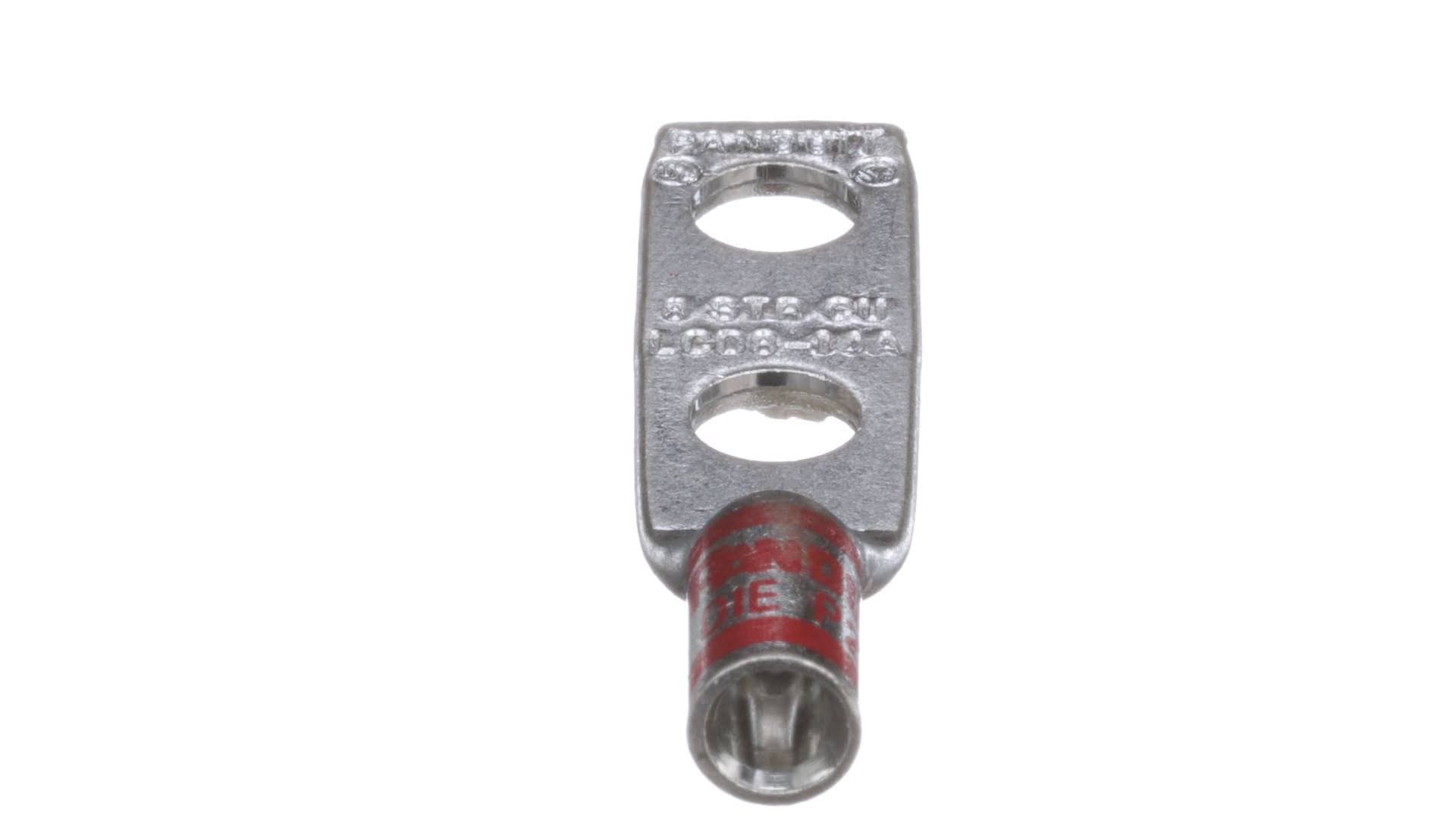

#8 Awg Lug, W/insp Window, 2 Hole, 1/4" Stud, 5/8" Space, St
The Panduit Corporation LCD814AL is a high-quality #8 AWG lug designed for use in electrical applications. It features an inspection window for easy visual confirmation of proper wire insertion, and has two holes for secure wire termination. The lug has a 1/4" stud size and 5/8" spacing, making it compatible with a variety of wire sizes and configurations.
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Copper Code Conductor Size (AWG) | 8 |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 1.97 |
| Overall Length (mm) | 50.1 |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 5/8 |
| Wire Strip Length (mm) | 15.9 |
