Manufacturer
CommScope
MPN
PWRT-608-S
MOQ
35
Available
20,610
Condition
New

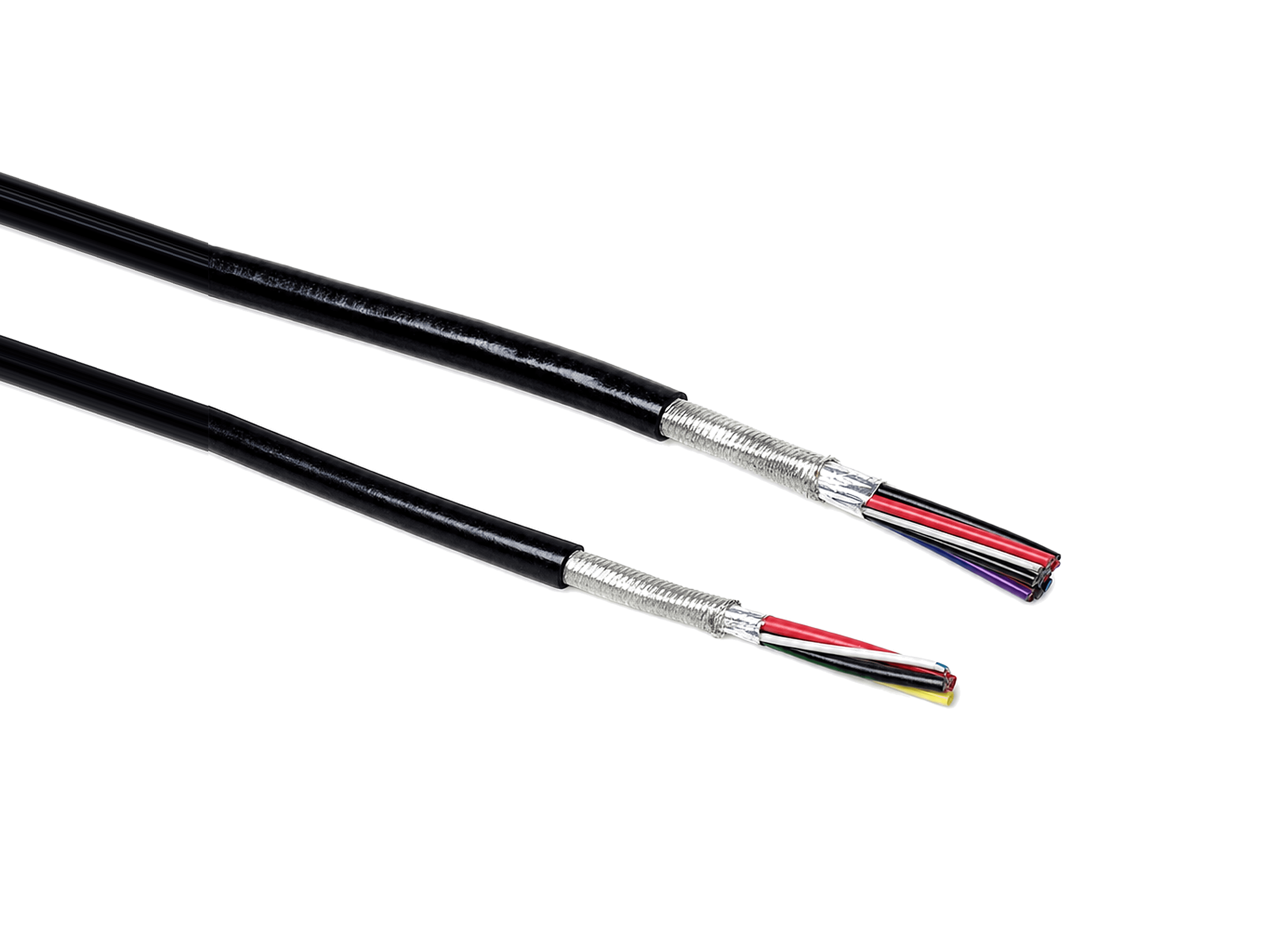

Power Cable 6 X 8g Shielded
The CommScope PWRT-608-S is a high-quality power cable designed for use in various applications. It features 6 conductors, each made of gauge wire, and is shielded for added protection against interference. This cable is also compliant, ensuring it meets industry standards for safety and performance.
Specifications | |
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 6 |
| Construction Type | Discrete power cable / Non-armored |
| Fiber System Configuration Type | Hybrid with OVP, 6 RRU / Hybrid with OVP, low inductance, 6 RRU / Hybrid with junction box, 4 RRU |
| Ground Wire Type | Stranded |
| Jacket Color | Black |
| Diameter Over Conductor, singles, specific | 0.1520 in per 19 strands |
| Diameter Over Dielectric | 6.147 mm / 0.242 in |
| Diameter Over Drain Wire, specific | 2.5700 in per 7 strands |
| Diameter Over Ground Wire | 2.921 mm / 0.115 in |
| Diameter Over Jacket, nominal | 20.117 mm / 0.792 in |
| Diameter Over Jacket, maximum | 20.625 mm / 0.812 in |
| Diameter Over Shield (Braid) | 18.542 mm / 0.73 in |
| Jacket Thickness | 1.524 mm / 0.06 in |
| Conductor Gauge, singles | 8 AWG |
| Drain Wire Gauge | 12 AWG |
| Ground Wire Gauge | 10 AWG |
| Outer Shield (Braid) Gauge | 36 AWG |
| Conductor dc Resistance | 2.198 ohms/km / 0.67 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 600 V |
