Manufacturer
Alcatel-Lucent
MPN
1AB187280063
MOQ
6
Available
20,021
Condition
New

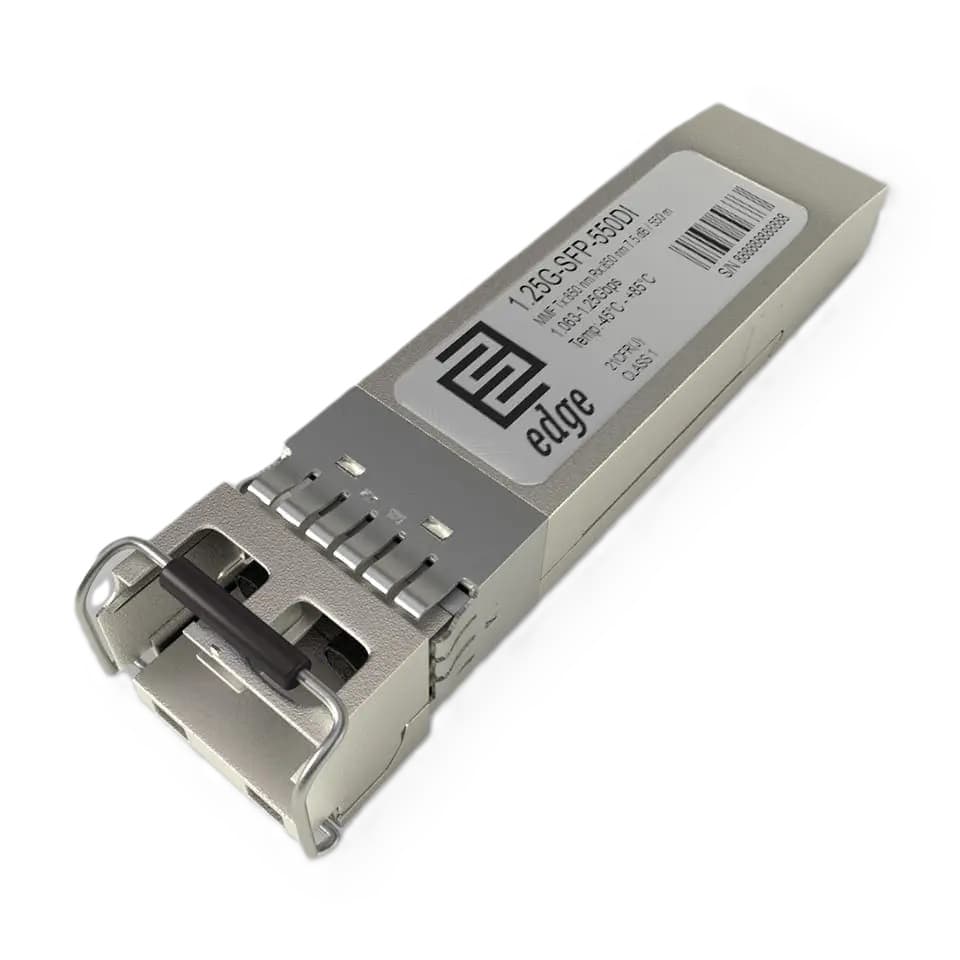

Alcatel-Lucent 1AB187280063 - Transc-1af 1ab187280063 1000-sx Eth Sfp
The 1AB187280063 is a 1000-sx Eth Sfp, which means it is capable of transmitting data at speeds of up to 1 gigabit per second over short distances using multimode fiber optic cables. This SFP module is designed to be hot-swappable, meaning it can be inserted or removed from a compatible device without disrupting the operation of the network.
Key Technical Data | |
|---|---|
| Media Type: | Multi-Mode Fiber (MMF) |
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 7.5 dB |
| Maximum Distance: | 550m |
| Supported Data Rate: | 1.063-1.25Gbps |
| Supported Applications: | Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| Temperature Range: | Industrial -45°C – +85°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -9.5 dB |
| Maximum Transmitting Power: | 3 dB |
| Receiver Sensitivity: | -17 dBm |
| Receiver Overload: | -3 dBm |
| Dispersion: | 110 ps/nm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Transceiver Type: | SFP |
