Manufacturer
Juniper Networks
MPN
EX-SFP-1GE-SX-ET
MOQ
6
Available
755
Condition
New

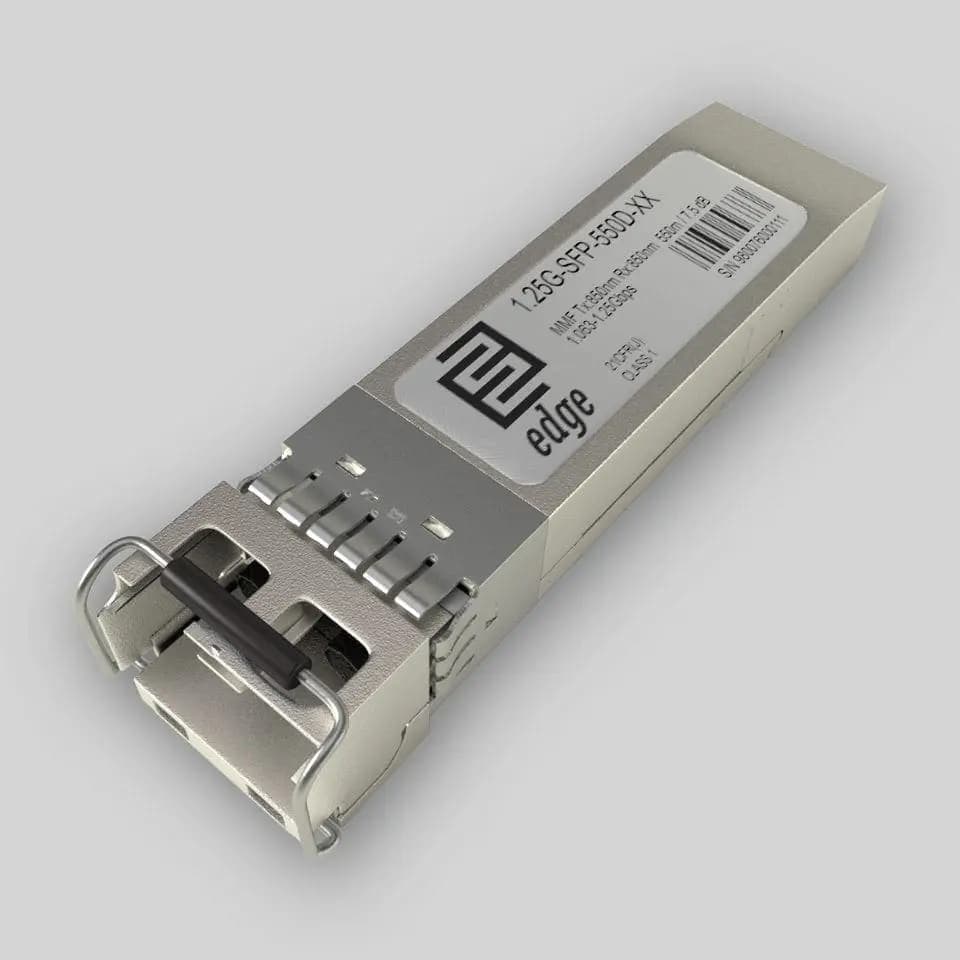

Juniper Networks EX-SFP-1GE-SX-ET - (740-011613) Pdt, Interface, Sfp, 1000base-sx, Gigabit
The Juniper Networks EX-SFP-1GE-SX-ET is a high-quality, reliable and efficient interface module designed for use with Juniper Networks switches. This SFP (Small Form-factor Pluggable) module is specifically designed for 1000BASE-SX Gigabit Ethernet connections, providing fast and reliable data transfer speeds. This module is compatible with a wide range of Juniper Networks switches, making it a versatile and cost-effective solution for network connectivity.
It is also hot-swappable, allowing for easy installation and replacement without disrupting network operations. It supports a maximum distance of 550 meters over multimode fiber, making it suitable for short-range connections. With its high-performance capabilities, this SFP module is perfect for use in data centers, enterprise networks, and other high-bandwidth applications.
Technical Data | |
|---|---|
| Media Type: | Multi-Mode Fiber (MMF) |
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 7.5 dB |
| Maximum Distance: | 550m |
| Supported Data Rate: | 1.063-1.25Gbps |
| Supported Applications: | Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -9.5 dB |
| Maximum Transmitting Power: | 3 dB |
| Receiver Sensitivity: | -17 dBm |
| Receiver Overload: | -3 dBm |
| Dispersion: | 110 ps/nm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Transceiver Type: | SFP |
