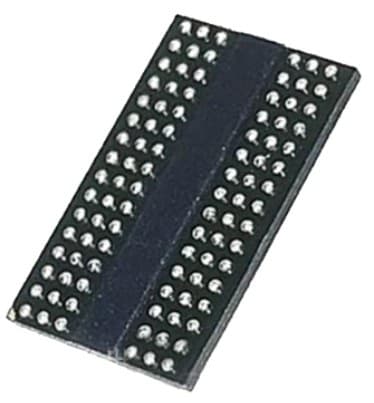

8-units min. Nanya Technology NT5CC256M16EP-EK DDR3 SDRAM 4Gb - NT5CC256M16EP-EK
Slide 1 of 1
Manufacturer
Nanya Technology
MPN
NT5CC256M16EP-EK
MOQ
8
Available
0
Condition
Used
Nanya Technology NT5CC256M16EP-EK DDR3 SDRAM 4Gb
The Nanya Technology NT5CC256M16EP-EK is a high-performance DDR3 SDRAM. This memory module is specifically designed for use in computers, laptops, and other electronic devices that require fast and reliable data storage and retrieval.
This DDR3 SDRAM offers lightning-fast performance, making it ideal for demanding applications such as gaming, video editing, and multitasking. This memory module is also equipped with a heat spreader to dissipate heat and maintain optimal operating temperatures.
Applications:
- Embedded Computing: A documented real-world use case is in the STM32MP157 processor core board, where two of these chips are used to create a memory subsystem.
- Networking & Communication: Routers, switches, and communication modules.
- Consumer Electronics: Smart TVs, set-top boxes, and various digital home appliances.
- Industrial Systems: Automation controls and instrumentation, provided the operating temperature is confirmed to meet requirements
Specifications | |
| Organization | 256MX16 |
| Maximum Seated Height | 1 mm |
| Access Mode | MULTI BANK PAGE BURST |
| Minimum Supply Voltage (Vsup) | 1.283 V |
| Surface Mount | YES |
| No. of Terminals | 96 |
| No. of Words | 268435456 words |
| Terminal Position | BOTTOM |
| Technology | CMOS |
| Terminal Form | BALL |
| Maximum Operating Temperature | 95 Cel |
| Width | 8 mm |
| No. of Ports | 1 |
| Memory Density | 4294967296 bit |
| Memory IC Type | DDR3L DRAM |
| Memory Width | 16 |
| No. of Functions | 1 |
| Length | 13 mm |
| No. of Words Code | 256M |
| Nominal Supply Voltage / Vsup (V) | 1.35 |
| Terminal Pitch | .8 mm |
| Maximum Supply Voltage (Vsup) | 1.45 V |
