APC by Schneider Electric AP9613 - Dry Contact I/O SmartSlot Card
Slide 1 of 1
Manufacturer
APC by Schneider Electric
MPN
AP9613
Available
1
Condition
New

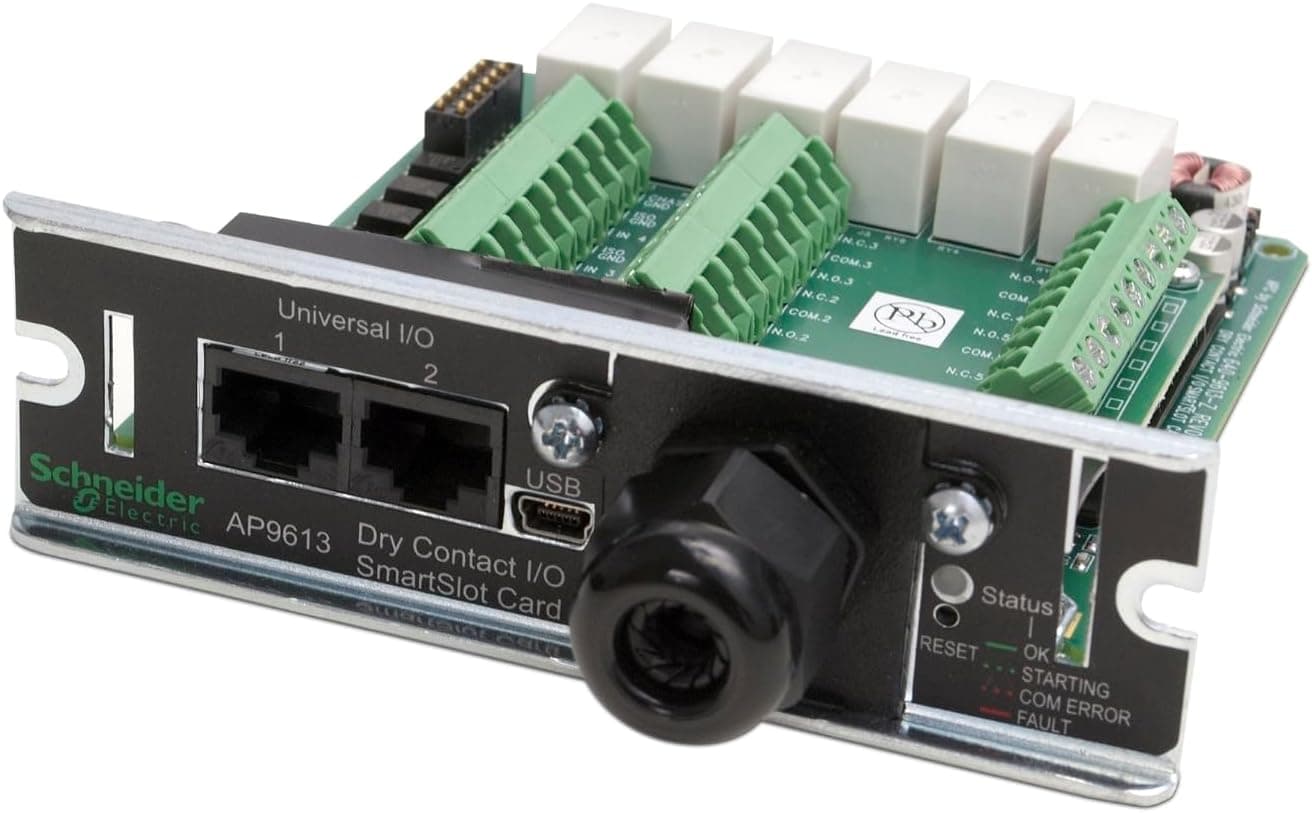

APC by Schneider Electric AP9613 - Dry Contact I/O SmartSlot Card
The APC by Schneider Electric AP9613 is a Dry Contact I/O SmartSlot Card designed to provide advanced monitoring and control capabilities for your APC Smart-UPS or Symmetra UPS system. This card allows you to connect external devices such as sensors, switches, and relays to your UPS, giving you the ability to monitor and control them remotely.
It is easy to install and configure, and can be managed through the APC PowerChute software or through a web browser. With its advanced monitoring and control capabilities, you can have peace of mind knowing that your UPS system is always running at its best.
Provides 6 configurable output relays and 4 input contacts
Universal I/O ports support optional environmental sensors and Dry Contact I/O Accessory
Monitor connected devices via Configuration Utility user interface
Configure actions to status changes or UPS events via Configuration Utility user interface
For UPS devices with a SmartSlot 16kVA or below
View all Management Options and Cables
Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts
AP9613
Compare
Discontinued on:Nov 7, 2025
Recommended replacement(s)
AP9613 may be replaced by any of the following products:
Product availability: Non-Stock - Not normally stocked in distribution facility
Provides 6 configurable output relays and 4 input contacts
Universal I/O ports support optional environmental sensors and Dry Contact I/O Accessory
Monitor connected devices via Configuration Utility user interface
Configure actions to status changes or UPS events via Configuration Utility user interface
For UPS devices with a SmartSlot 16kVA or below
Environmental Data
Total lifecycle Carbon footprint
282 kg CO2 eq.
Use Better
Packaging made with recycled cardboard
No
Use Longer
Repair
No
Use Again
Recyclability potential, in %
95
Take-back
No
In Cart
Main documents
Documents
See all documents
Compatible Products
SmartSlot (1)
Description
The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Specifications | |
|---|---|
| Presentation | UPS management SmartSlot Card with Dry Contact (relay) support to monitor external triggers and initiate actions on external devices. |
| Product or Component Type | Dry contact |
| Number of rack unit | 0U |
| Provided Equipment | User Manual USB cable |
| Range of Product | Management Options and Cables |
| Color | Black |
| Height | 1.5 in (3.8 cm) |
| Width | 4.8 in (12.1 cm) |
| Depth | 4.5 in (11.4 cm) |
| Net Weight | 0.46 lb(US) (0.21 kg) |
| Mounting preference | No preference |
| Mounting Mode | Not rack-mountable |
| Ambient Air Temperature for Operation | 32…104 °F (0…40 °C) |
| Relative Humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient Air Temperature for Storage | 5…149 °F (-15…65 °C) |
| Storage Relative Humidity | 0…95 % |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.850 in (4.700 cm) |
| Package 1 Width | 6.496 in (16.500 cm) |
| Package 1 Length | 9.213 in (23.400 cm) |
| Package weight(Lbs) | 14.109 oz (400.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 7.013 lb(US) (3.181 kg) |
