Manufacturer
Belden
MPN
1585A
MOQ
90
Available
0
Condition
New

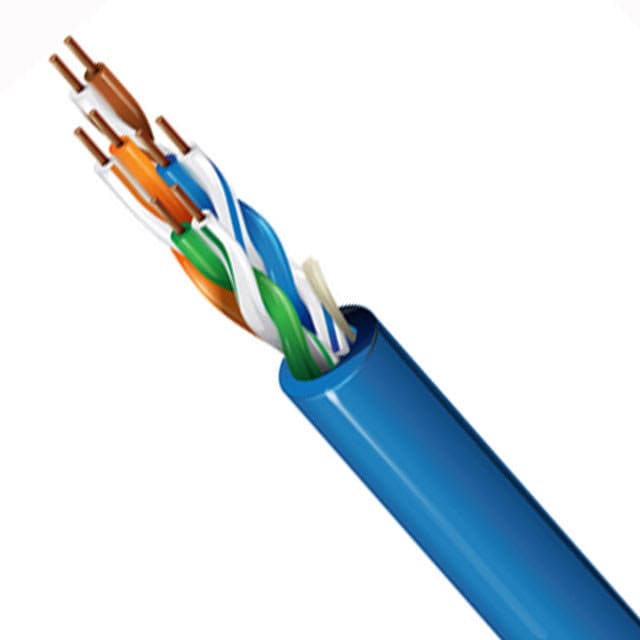

BELDEN 24AWG solid conductor, blue plenum jacket, 4 pair. CAT 5E rated. Unshielded twisted pair, sold per foot.
The Belden 1585A is a high-quality 24-gauge 4-pair UTP CAT5E plenum cable in a vibrant blue color. This cable is made with four twisted pairs of 24-gauge solid copper conductors, providing excellent performance and signal integrity for data transmission. It is also compliant with the CAT5E standard, which means it can support data transfer speeds of up to 1 Gbps.
One of the key features of this cable is its plenum rating. This means that it is suitable for use in plenum spaces, which are areas in a building used for air circulation. Plenum spaces require special fire-resistant materials, and this cable meets the necessary safety standards for use in these environments.
| Cable Type | Multi-Pair, Cat5e | |
| Number of Conductors | 8 (4 Pair Twisted) | |
| Wire Gauge | 24 AWG | |
| Conductor Strand | Solid | |
| Conductor Material | Copper, Bare | |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | |
| Jacket (Insulation) Diameter | 0.190" (4.83mm) | |
| Shield Type | - | |
| Length | 1000.0' (304.8m) | |
| Jacket Color | Blue | |
| Ratings | UL Style CMP | |
| Features | Rip Cord | |
| Voltage | 300 V | |
| Operating Temperature | -20°C ~ 75°C | |
| Usage | Network | |
| Jacket (Insulation) Thickness | - | |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP), Polyolefin (PO) | |
| Shield Material | - | |
| Shield Coverage | - | |
| Base Product Number | 1585A |
