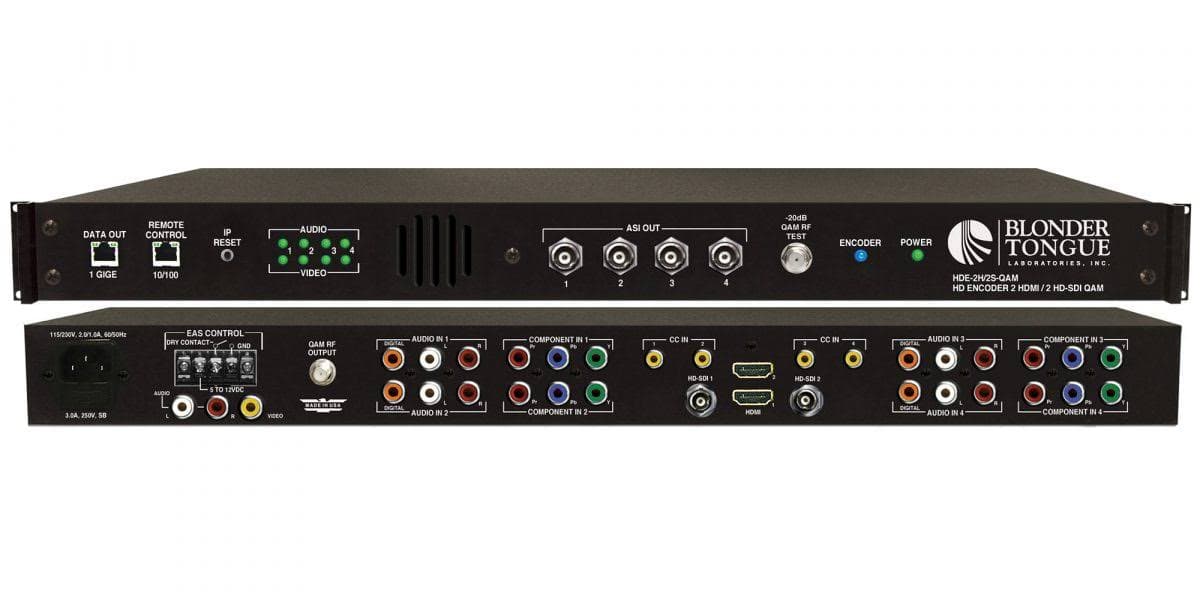

Blonder Tongue Laboratories, Inc. HDE2H/2SQAM6379A : High Definition Encoder 4 Programs, 2hdmi+2hdsdi

: High Definition Encoder -4 Programs, 2hdmi+2hd-sdi

The Blonder Tongue Laboratories, Inc. HDE2H/2SQAM6379A is a high definition encoder that can handle up to 4 programs at once. It features 2 HDMI inputs and 2 HD-SDI inputs, allowing for a variety of sources to be encoded.

This encoder is designed to provide high quality video and audio encoding for professional applications. With its compact size and advanced features, the HDE-2H/2S-QAM-6379A is a versatile and reliable choice for any broadcasting or streaming needs.

Features:

Accepts up to four (4) programs from any of the following inputs: 2xHDMI (unencrypted), 2xHD-SDI, and 4xComponent/Composite

Simultaneously delivers the following outputs: 4xQAM, 4xGigE, and 4xASI

Multiplexes up to four (4) input programs in any of the following output combinations:

1:1 (1 program per QAM channel)

2:1 (2 programs per QAM channel, not exceeding 38.8Mbps)

3:1 (3 programs per QAM channel, not exceeding 38.8 Mbps)

4:1 (4 programs per QAM channel, not exceeding 38.8 Mbps)

Each of the four (4) QAM channels can (i) contain 1 or 2 programs, and (ii) be turned on/off individually

Provides +52 dBmV QAM output level for four (4) combined channels (+60 dBmV for 1 QAM)

Provides comprehensive GUI-based monitoring and control via standard Web browsers

Supports Closed Captioning EIA-608 and EIA-708

Equipped with EAS interface (Analog Video + L/R Audio)

Supports Real-time Dolby Digital audio encoding

Supports user-defined PSIP configuration

Specifications:

General

Dimensions (W x D x H): 19.0 x 18.125 x 1.75 inches (483 x 460 x 44 mm)

Power: 115-230VAC, 60/50Hz (Fuse:3.0A, 250VDC, Slo Blo)

Power Dissipation: 60 W

Weight: 8 lbs (3.6 kg)

Operating Temperature: 32 to 122 °F (0 to 50 °C)

Storage Temperature: -13 to 158 °F (-25 to 70 °C)

Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing

Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing

Input

HDMI Connectors: 2x HDMI

Video Resolution: 480i, 720p, 1080i

HDCP Encryption: Not supported

Audio: Embedded PCM and pass-through Dolbyr Digital

HD-SDI Connectors: 2x BNC

Standard: SMPTE 292M

Video Resolution: 480i, 720p &1080i

Audio: Embedded PCM Audio and pass-through Dolbyr Digital

Component: 4 sets each 3x RCA for Video (Y, Pb, Pr)

Connectors: 4 sets each 2x RCA for Analog Audio (L, R); 4 sets each 1x RCA for Digital Audio (PCM)

Video Resolution: 480i, 720p, 1080i

Video Aspect Ratio: 4:3 & 16:9

Connectors: 3x RCA (Video, Audio L & R)

Trigger Mechanism: 5-12 VDC & Dry Contact Closure (Terminal Strip)

Output

QAM Connector: 1x "F" Female (rear panel; up to 4x RF QAM ch. combined)

Modulation: QAM 16, 32, 64, 128, and 256

Standards: ITU-T J.83; Annex A and B

DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)

Frequency Range: 54 to 1002 MHz

Tuning: CATV Channel Selectable (Ch. 2 to 158)

Channels' Bandwidth: 24 MHz (4x Adjacent 6MHz)

RF Level: +42 to +52 dBmV, 1 dB increment (4 ch. combined) +46 to +56 dBmV, 1 dB increment (2 ch. combined)

RF Level Accuracy: ± 1 dB

Frequency Tolerance: ± 0.5 kHz @ 77 °F (25 °C)

Frequency Stability: ± 5 kHz over 32 to 122 °F (0 to 50 °C)

Amplitude Flatness: ± 0.25 dB (over 6 MHz channel)

Phase Noise: -98 dBc (@ 10 kHz)

Spurious: -57 dBc

Broadband Noise: -70 dBc (@ +52 dBmV output level, 5.5 MHz bandwidth)

Impedance: 75 Ohm

Spectral Inversion: Auto Recognition

Carrier Suppression: 45 dB

Return Loss: 14 dB typical

Signal-to-Noise Ratio (SNR): 40 dB typical

MER: 40 dB typical

I/Q Phase Error: Less than 1 degree

I/Q Amplitude Imbalance: Less than 1%

ASI Connectors: 4x BNC (Front-panel)

Format: DVB-ASI

Standard: ETSI EN 50083-9

GigE Connector: 1x RJ45 (Front-panel)

Standard: 1000Base-T Ethernet

UDP/RTP: Supported (user-selectable)

Address Assignment: 4x IPv4 addresses & port numbers (user-selectable)

Encoding Profile

Video Output Format: MPEG-2 HD MP@ML; ISO 13818-2

Chroma: 4:2:0

Resolution: 480i, 720p & 1080i

Frame rate: 29.97 fps (1080i); 59.97 fps (720p)

Aspect Ratio: 16:9, 4:3

GOP Structure: I & P frames (user-selectable)

Transport Rate: Variable (user-selectable)

Video Bit Rate: Variable (user-selectable)

Video Pre-filter: Variable (user-selectable)

Intra DC Precision: Variable; 8-11 bit (user-selectable)

Color Space: YCbCr and RGB

Audio Output Format: Dolby Digital

Sampling rate: 48 kHz

Bit rate: Variable; 96 - 448 Kbps (user-selectable)

Closed Captioning HDMI: EIA- 608; 4x RCA (CC IN)

HD-SDI: Pass-through (Embedded in HD-SDI input)

Component: EIA- 608
