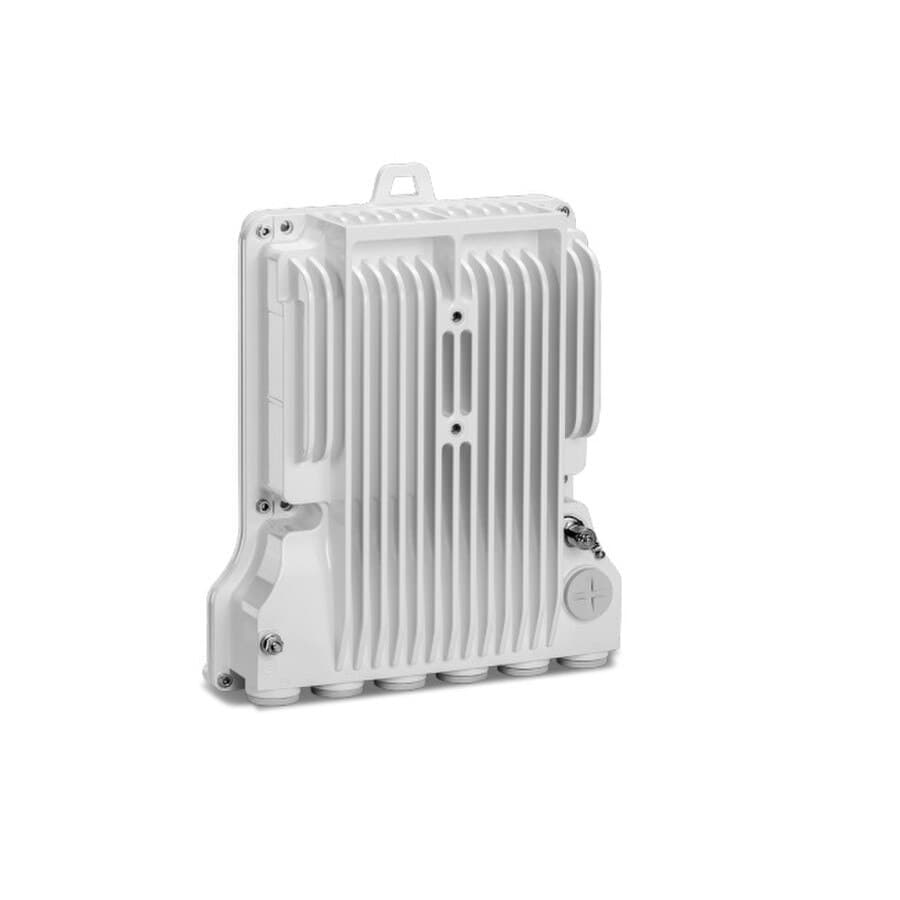

Ceragon Networks IP-50E-DX0H-L-ESSQ - Ip50e Low 80ghz

Ceragon Networks IP-50E-DX0H-L-ESSQ - Ip50e Low 80ghz

The Ceragon Networks IP-50E-DX0H-L-ESSQ is a high-performance wireless communication device designed for use in the 80GHz frequency band. This IP50e model is equipped with advanced features and technologies, making it ideal for a wide range of applications such as backhaul, last-mile connectivity, and enterprise networks.

It offers a low power consumption, making it a cost-effective solution for network operators. The IP-50E-DX0H-L-ESSQ supports a wide range of frequencies, including 71-76GHz and 81-86GHz, providing flexibility and scalability for network expansion. It also offers a high throughput of up to 1Gbps, allowing for fast and efficient data transmission.

RADIO

Radio capacity: 20Gbps (2+0 XPIC configuration, utilizing two units)

Supported frequency bands: 71-86GHz

Supported channel spacing: 62.5-2000MHz

ACM steps: 9, BPSK-512QAM

Antenna offering: parabolic, integrated flat panel (FCC, class-3 compliant), hitless multiband

INTERFACES

4 x 1/10GbE or 40GbE traffic interface (QSFP+)

1/10GbE traffic interface (SFP+, CPRI, eCPRI)

1GbE traffic interface (SFP) or 1/2.5GbE multiband port

1GbE management/PoE port

CAPACITY

Networking capacity: 40Gbps

Layer-1 carrier bonding: supports XPIC and multiband with any additional layer-1 connection
