Manufacturer
Cisco
MPN
SPA-OC192POS-XFP
Available
98
Condition
Refurbished

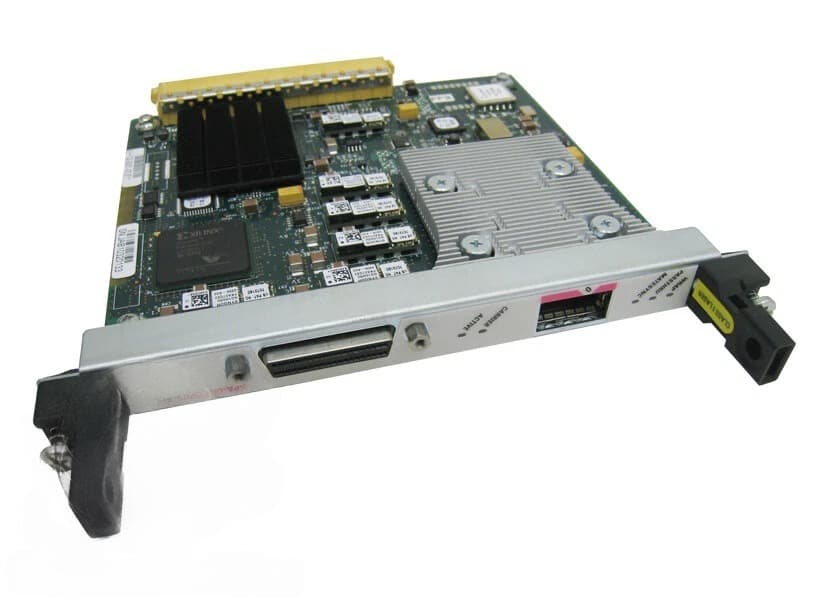

Cisco SPA-OC192POS-XFP - Dwdm Other 1-port Oc192 Stm64 Pos Rp
The Cisco SPA-OC192POS-XFP is a high-performance 1-port OC192/STM64 POS RP module designed for use in dense wavelength division multiplexing (DWDM) networks. This module is compatible with Cisco's SPA interface processors and can be used in a variety of Cisco routers and switches. With its XFP form factor, this module supports data rates of up to 10 Gbps and can transmit and receive data over a single optical fiber.
It also supports a variety of protocols, including SONET, SDH, and OTN, making it a versatile solution for high-speed data transmission. The Cisco SPA-OC192POS-XFP is ideal for use in long-haul and metro networks, providing reliable and high-speed connectivity for critical applications. It is also hot-swappable, allowing for easy installation and replacement without disrupting network operations.
Specifications | |
| Product compatibility | • Cisco ASR 1000 Series Router • Cisco ASR 9000 Series Router |
| Port density per SPA | • 1 port • DPT/RPR configuration - two SPAs are needed to connect to one RPR ring |
| Physical interface | • OC-192c/STM-64c fixed interface or pluggable (XFP) optics module • Connector: • XFP-LC connector • Long reach (LR)-SC connector • Very short reach (VSR)-Standard media termination point (MTP) (multipath optical [MPO]) multifiber optical connectors • RPR operation requires a mate cable-part number CBL-RPR-OC192-L or CBL-RPR-OC192-S • Visual status indicators (LEDs): • SPA status LED • Per-port LEDs • Carrier and alarm • Active and loopback • Protect • Pass-through |
| Protocols | • High-Level Data Link Control (HDLC), RFC 2615 • Point-to-Point Protocol (PPP), RFC 1662 • Frame Relay, RFC 2427 • IPv4/IPv6 • IEEE 802.17 RPR • IETF 2892-SRP |
| Features and functions | • Synchronization • Local (internal) or loop timed (recovered from network) • Layer 3 clock accuracy (± 4.6 ppm) over full operating temperature • Pointer activity monitoring • Local (diagnostic) and line (network) loopback • Section data communication channel (SDCC) -platform-dependent feature • Payload mapping • 1 + x^43 self-synchronous scrambler • SONET/SDH compliance • Telcordia (Bellcore) GR-253-CORE (as applicable) • ANSI T1.105, and T1.231 • ITU-T G.707, G.957, and G.825 (as applicable) • Supported SONET/SDH alarm and signal events • Signal failure bit error rate (SF-ber) • Signal degrade bit error rate (SD-ber) • Signal label payload construction (C2) • Path trace byte (J1) • Section • Loss of signal (LOS) • Loss of frame (LOF) • Error counts for B1 • Threshold crossing alarms (TCA) for B1 • Error counts for B2 • Threshold crossing alarms (TCA) for B2 • Line • Line alarm indication signal (LAIS) • Line remote defect indication (LRDI) • Line remote error indication (LREI) • Path • Path alarm indication signal (PAIS) • Path remote defect indication (PRDI) • Path remote error indication (PREI) • Error counts for B3 • TCA for B3 • Loss of pointer (LOP) • Positive stuffing event (PSE) • Negative stuffing event (NSE) • Path unequipped indication signal (PUNEQ) • Path payload mismatch indication signal (PPLM) |
| Network management | • RFC 2558 MIB (SONET/SDH) • Simple Network Management Protocol (SNMP) |
| Reliability and availability | • Online insertion and removal (OIR) • Field-replaceable XFP optical modules • 1 + 1 SONET automatic-protection-switching (APS) and SDH linear multiplex-section-protection (MSP) protocols • Single SPA software reset |
| Physical specifications | • Weight: 0.75 lb (0.34 kg) • Height: 0.8 in. (2.03 cm) (single height - XFP interface) • Height: 1.6 in. (4.06 cm) (double height - VSR, LR fixed optics) • Width: 6.75 in. (17.15 cm) • Depth: 7.28 in. (18.49 cm) |
| Power | 15.5W maximum |
| Environmental specifications | • Operating temperature: 41 to 104°F (5 to 40°C) • Storage temperature: -38 to 150°F (-40 to 70°C) • Operating humidity: 5 to 85% relative humidity • Storage humidity: 5 to 95% relative humidity |
