Cisco SRW2024-K9 – 28-Port Gigabit Managed Switch
Slide 1 of 1
Manufacturer
Cisco
MPN
SRW2024-K9
Available
6
Condition
New

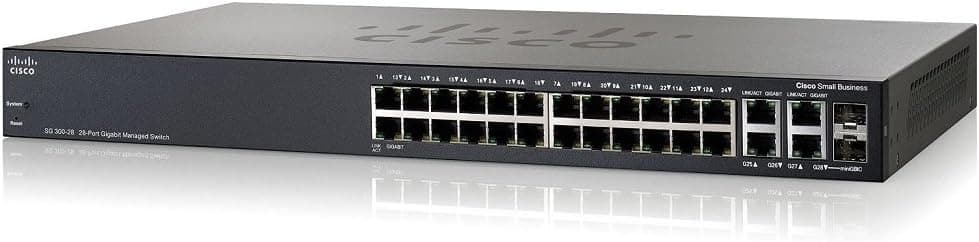

Cisco SRW2024-K9 – 28-Port Gigabit Managed Switch
The Cisco SRW2024-K9 is a high-performance 28-port Gigabit managed switch designed for small to medium-sized businesses. This switch is equipped with 28 Gigabit Ethernet ports, providing high-speed connectivity for all your devices. It also has two combo mini-GBIC ports for flexible fiber connectivity options. With a switching capacity of 56 Gbps, this switch can handle large amounts of data traffic without compromising performance.
It supports advanced features such as VLANs, QoS, and link aggregation, giving you the ability to prioritize and manage your network traffic for optimal performance. It also has a web-based interface for easy configuration and monitoring. It also supports advanced security features such as port security and access control lists to protect your network from unauthorized access.
About this item
The Cisco SG300-28 Network Switch deliver the ideal combination of price, performance, and capabilities in a solution designed specifically for small businesses.
Choose from Fast Ethernet or Gigabit Ethernet connectivity
24 x Gigabit Ethernet Ports (24 port Gigabit Switch)
2 x Gigabit Ethernet Combo Ports
IPv6 Support
Specifications | |
|---|---|
Data transmission | |
| MAC address table | 16384 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 56 Gbit/s |
Design | |
| LED indicators | Yes |
| Product colour | Black |
| Stackable | No |
Management features | |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
Network | |
| 10G support | No |
| IP routing | Yes |
| Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Routing entries | 32 |
| Spanning tree protocol | Yes |
Operational conditions | |
| Heat dissipation | 70.29 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Other features | |
| Authentication method | RADIUS, MD5 |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Non-operating relative humidity (non-condensing) | 10 - 90% |
| Wi-Fi | No |
Performance | |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 179141 h |
| Minimum system requirements | Mozilla Firefox 2.5, Microsoft Internet Explorer 6 |
Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 26 |
| SFP/SFP+ slots quantity | 2 |
Power | |
| Power consumption (typical) | 19.8 W |
| Power source | AC |
Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
Protocols | |
| Management protocols | SNMP 1/2c/3, RMON, HTTP/HTTPS, TFTP, DHCP, SSH, RADIUS, BOOTP, SNTP |
Security | |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Weight & dimensions | |
| Depth | 257 mm |
| Height | 44.5 mm |
| Weight | 3.28 kg |
| Width | 440 mm |
