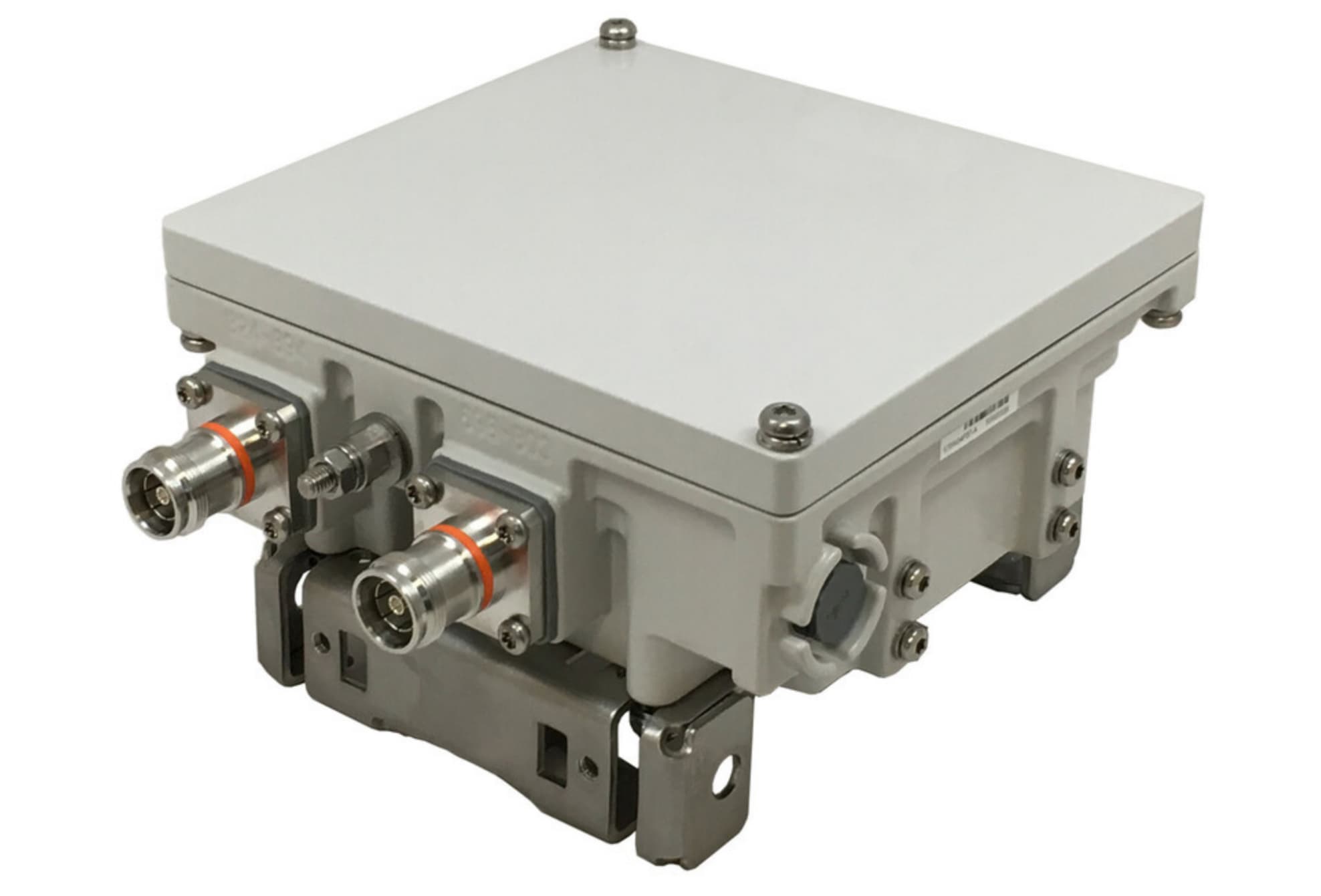

CommScope CBC78-DS-43 - DIPLEXER 698-803/824-894MHZ DC-SENSE
The CommScope CBC78-DS-43 is a high-quality diplexer designed for use in wireless communication systems. It is specifically designed to combine or separate signals in the 698-803 MHz and 824-894 MHz frequency bands, making it ideal for use in cellular networks.
This diplexer also features DC-sensing capabilities, allowing it to sense and filter out any DC voltage present in the signal. This helps to ensure optimal performance and protection for your equipment. With its compact and durable design, the CBC78-DS-43 is a reliable and efficient solution for your communication needs.
Automatic dc switching with dc sense
Convertible mounting brackets
Stackable in multiples with included hardware
General specifications | |||
| Color | Gray | ||
| Common Port Label | Common | ||
| Modularity | 1-Single | ||
| Mounting | Pole | Wall | ||
| Mounting Pipe Hardware | Band clamps (2) | ||
| RF Connector Interface | 4.3-10 Female | ||
| RF Connector Interface Body Style | Long neck | ||
Dimensions | |||
| Height | 162 mm | 6.378 in | ||
| Width | 176 mm | 6.929 in | ||
| Depth | 73.5 mm | 2.894 in | ||
| Ground Screw Diameter | 6 mm | 0.236 in | ||
Electrical specifications | |||
| Impedance | 50 ohm | ||
| License Band, Band Pass | CEL 850 | USA 700 | USA 750 | ||
Electrical specifications, common port | |||
| Composite Power, RMS | 250 W | ||
Electrical specifications, dc power/alarm | |||
| dc/AISG Pass-through Method | Auto sensing | ||
| dc/AISG Pass-through Path | See logic table | ||
| Lightning Surge Current | 10 kA | ||
| Lightning Surge Current Waveform | 8/20 waveform | ||
Electrical specifications, aisg | |||
| AISG Carrier | 2176 KHz ± 100 ppm | ||
| Insertion Loss, maximum | 1 dB | ||
| Return Loss, minimum | 15 dB | ||
Electrical specifications | |||
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 1 | 2 |
| Port Designation | 698-803 | 824–894 | |
| License Band | USA 700, Band Pass USA 750, Band Pass | USA 700, Band Pass USA 750, Band Pass | CEL 850, Band Pass |
Electrical specifications, band pass | |||
| Frequency Range, MHz | 698–803 | 698–798 | 824–894 |
| Insertion Loss, typical, dB | 0.30 | 0.20 | 0.20 |
| Total Group Delay, maximum, ns | 45 | 35 | |
| Return Loss, minimum, dB | 22 | 22 | |
| Return Loss, typical, dB | 24 | 24 | |
| Isolation, minimum, dB | 35 | 50 | 50 |
| Input Power, RMS, maximum, W | 200 | 200 | |
| Input Power, PEP, maximum, W | 2,000 | 2,000 | |
| 3rd Order PIM, minimum, dBc | -161 | -161 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | |
Environmental specifications | |||
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) | ||
| Relative Humidity | 5%–100% | ||
| Corrosion Test Method | IEC 60068-2-11, 30 days | ||
| Ingress Protection Test Method | IEC 60529:2001, IP67 | ||
Weights | |||
| Weight, without mounting hardware | 2.7 kg | 5.952 lb |
