CommScope NNH4-65A-R6 - Commscope, Nnh4-65a-r6, 4 Ft Ultra-broadband,12-port, (4xlo+8xhi) X-polarization, 65 Deg Hbw 6 Independent Tilts,

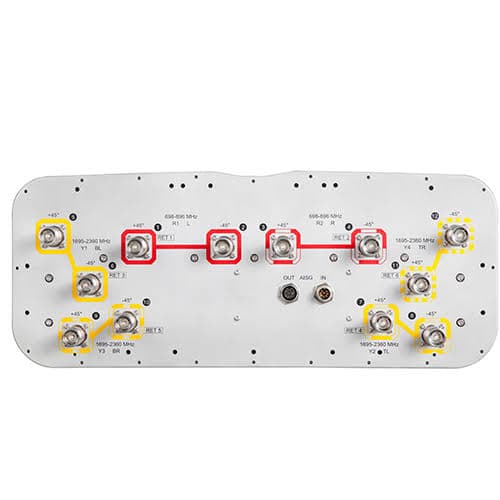

Commscope, Nnh4-65a-r6, 4 Ft Ultra-broadband, (700/850/pcs/aws/wcs) 12-port,(4xlo+8xhi) X-polarization,65 Deg Hbw 6 Independent Tilts,kit Incl Mounting Bracket:, 4 Ft Ultra-broadband, (700/850/pcs/aws/wcs) 12-port, (4xlo+8xhi) X-polarization, 65 Deg Hbw 6 Independent Tilts, Kit Incl Mounting Bracket:The CommScope NNH4-65A-R6 is a high-performance, ultra-broadband antenna designed for use in wireless communication systems. This 4-foot antenna features 12 ports, with a combination of 4 low-band and 8 high-band ports, allowing for increased flexibility and coverage. The NNH4-65A-R6 is manufactured by CommScope, a trusted brand in the telecommunications industry. This antenna is designed to meet the demands of modern wireless networks, providing reliable and high-speed connectivity for a wide range of applications. With its X-polarization design, the NNH4-65A-R6 offers improved signal strength and reduced interference, ensuring a stable and consistent connection. The 6 independent tilts allow for precise beam shaping, making it ideal for use in areas with challenging terrain or obstructions. Interleaved dipole technology providing for attractive, low wind load mechanical packageArray configuration provides capability for 4T4R (4x MIMO) on Low band and Dual 4T4R (4x MIMO) on High bandOptimized SPR performance across all operating bandsAntenna TypeSectorBandMultibandColorLight Gray (RAL 7035)Grounding TypeRF connector body grounded to reflector and mounting bracket  Radome MaterialFiberglass, UV resistantRadiator MaterialAluminum | Low loss circuit boardReflector MaterialAluminumRF Connector Interface4.3-10 FemaleRF Connector LocationBottomRF Connector Quantity, high band8RF Connector Quantity, low band4RF Connector Quantity, total12RET HardwareCommRET v2RET Interface8-pin DIN Female | 8-pin DIN MaleRET Interface, quantity1 female | 1 maleInput Voltage10–30 VdcInternal RETHigh band (4) | Low band (2)Power Consumption, idle state, maximum1 WPower Consumption, normal conditions, maximum8 WProtocol3GPP/AISG 2.0 (Multi-RET)Width498 mm | 19.606 inDepth197 mm | 7.756 inLength1400 mm | 55.118 inNet Weight, without mounting kit33.5 kg | 73.855 lbImpedance50 ohmOperating Frequency Band698 – 896 MHz | 1695 – 2360 MHzPolarization±45°Total Input Power, maximum900 W @ 50 °CFrequency Band, MHz698–806806–8961695–18801850–19901920–21802300–2360Gain, dBi13.213.814.014.714.815.2Beamwidth, Horizontal, degrees726359606259Beamwidth, Vertical, degrees16.414.915.714.613.912.4Beam Tilt, degrees2–162–162–162–162–162–16USLS (First Lobe), dB151916181718Front-to-Back Ratio at 180°, dB293034353435Isolation, Cross Polarization, dB252525252525Isolation, Inter-band, dB252525252525VSWR | Return loss, dB1.5 | 14.01.5 | 14.01.5 | 14.01.5 | 14.01.5 | 14.01.5 | 14.0PIM, 3rd Order, 2 x 20 W, dBc-150-150-150-150-150-150Input Power per Port at 50°C, maximum, watts250250250250250200Effective Projective Area (EPA), frontal0.48 m² | 5.167 ft²Effective Projective Area (EPA), lateral0.16 m² | 1.722 ft²Mechanical Tilt Range0°–15°Wind Loading @ Velocity, frontal509.0 N @ 150 km/h (114.4 lbf @ 150 km/h)Wind Loading @ Velocity, lateral169.0 N @ 150 km/h (38.0 lbf @ 150 km/h)Wind Loading @ Velocity, maximum660.0 N @ 150 km/h (148.4 lbf @ 150 km/h)Wind Loading @ Velocity, rear419.0 N @ 150 km/h (94.2 lbf @ 150 km/h)Wind Speed, maximum241 km/h (150 mph)&nbsp

Please refer to the following attachments for additional details on the product.
