- Antenna Type:
- Sector
- Band:
- Multiband
- Color:
- Light Gray (RAL 7035)
- Grounding Type:
- RF connector body grounded to reflector and mounting bracket
- Performance Note:
- Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
- Radome Material:
- Fiberglass, UV resistant
- Radiator Material:
- Aluminum | Low loss circuit board
- Reflector Material:
- Aluminum

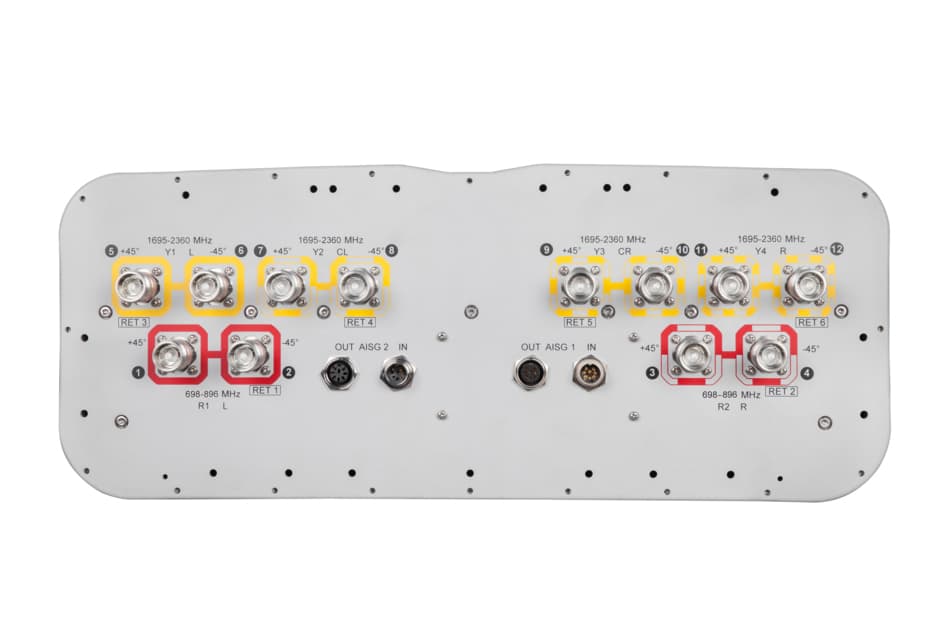

- RF Connector Interface:
- 4.3-10 Female
- RF Connector Location:
- Bottom
- RF Connector Quantity, high band:
- 8
- RF Connector Quantity, mid band:
- 0
- RF Connector Quantity, low band:
- 4
- RF Connector Quantity, total:
- 12
- RET Hardware:
- CommRET v2
- RET Interface:
- 8-pin DIN Female | 8-pin DIN Male
- RET Interface, quantity:
- 2 female | 2 male
- Input Voltage:
- 10–30 Vdc
- Internal RET:
- High band (4) | Low band (2)
- Power Consumption, idle state, maximum:
- 1 W
- Power Consumption, normal conditions, maximum:
- 8 W
- Protocol:
- 3GPP/AISG 2.0 (Multi-RET)
- Width:
- 498 mm | 19.606 in
- Depth:
- 197 mm | 7.756 in
- Length:
- 1499 mm | 59.016 in
- Net Weight, without mounting kit:
- 33.5 kg | 73.855 lb
- Impedance:
- 50 ohm
- Operating Frequency Band:
- 698 – 896 MHz | 1695 – 2360 MHz
- Polarization:
- ±45°
- Total Input Power, maximum:
- 900 W @ 50 °C
- Effective Projective Area (EPA), frontal:
- 0.52 m² | 5.597 ft²
- Effective Projective Area (EPA), lateral:
- 0.17 m² | 1.83 ft²
- Mechanical Tilt Range:
- 0°–15°
- Wind Loading @ Velocity, frontal:
- 549.0 N @ 150 km/h (123.4 lbf @ 150 km/h)
- Wind Loading @ Velocity, lateral:
- 183.0 N @ 150 km/h (41.1 lbf @ 150 km/h)
- Wind Loading @ Velocity, maximum:
- 712.0 N @ 150 km/h (160.1 lbf @ 150 km/h)
- Wind Loading @ Velocity, rear:
- 452.0 N @ 150 km/h (101.6 lbf @ 150 km/h)
- Wind Speed, maximum:
- 241 km/h (150 mph)
- Weight, gross:
- 43.8 kg | 96.562 lb
