CommScope SBNHH-1D65C - ANT - 2LB, 4HB, 65DEG, 2RET

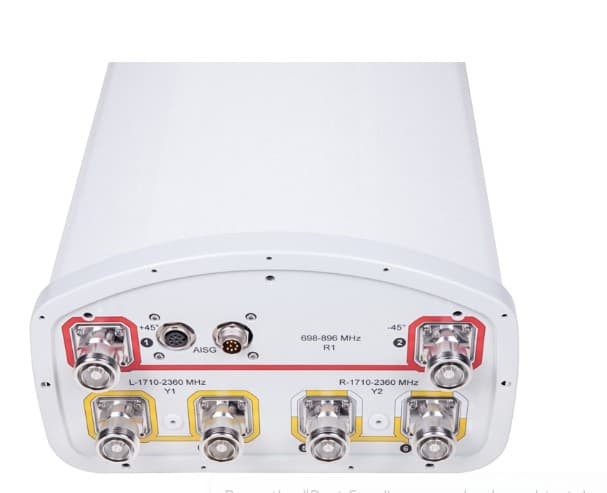

Commscope, Sbnhh-1D65C,Ant - 2Lb, 4Hb, 65Deg, 2Ret,The CommScope SBNHH-1D65C is a high-performance antenna designed for use in wireless communication systems. This antenna has a frequency range of 2.4-2.5 GHz and is capable of providing a gain of 2LB, 4HB, and 65 degrees. It also comes with 2RET (2 remote electrical tilt) capabilities, allowing for easy adjustment of the antenna's direction and coverage.Features and BenefitsInterleaved dipole technology providing for attractive, low wind load mechanical packageThe antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are availableGeneral SpecificationsAntenna TypeSectorBandMultibandColorLight Gray (RAL 7035)Grounding TypeRF connector inner conductor and body grounded to reflector and mounting bracket  Radome MaterialFiberglass, UV resistantRadiator MaterialAluminum | Low loss circuit boardReflector MaterialAluminumRF Connector Interface7-16 DIN FemaleRF Connector LocationBottom      Remote Electrical Tilt (RET) InformationRET Interface8-pin DIN Female | 8-pin DIN MaleRET Interface, quantity1 female | 1 maleInput Voltage10–30 VdcInternal RETHigh band (1) | Low band (1)Power Consumption, idle state, maximum2 WPower Consumption, normal conditions, maximum13 WProtocol3GPP/AISG 2.0 (Multi-RET)DimensionsWidth301 mm | 11.85 inDepth180 mm | 7.087 inLength2453 mm | 96.575 inNet Weight, without mounting kit22.5 kg | 49.604 lbElectrical SpecificationsImpedance50 ohmOperating Frequency Band698 – 896 MHz | 1695 – 2360 MHzPolarization±45°Electrical SpecificationsFrequency Band, MHz698–806806–8961695–18801850–19901920–22002300–2360Gain, dBi16.216.017.717.918.518.5Beamwidth, Horizontal, degrees666470656358Beamwidth, Vertical, degrees8.97.85.75.254.4Beam Tilt, degrees0–110–110–70–70–70–7USLS (First Lobe), dB111215151514Front-to-Back Ratio at 180°, dB293127272827Isolation, Cross Polarization, dB252525252525Isolation, Inter-band, dB303030303030VSWR | Return loss, dB1.5 | 14.01.5 | 14.01.5 | 14.01.5 | 14.01.5 | 14.01.5 | 14.0PIM, 3rd Order, 2 x 20 W, dBc-153-153-153-153-153-153Input Power per Port at 50°C, maximum, watts300300300300300250Electrical Specifications, BASTAFrequency Band, MHz698–806806–8961695–18801850–19901920–22002300–2360Gain by all Beam Tilts, average, dBi15.815.617.317.818.218.1Gain by all Beam Tilts Tolerance, dB±0.4±0.5±0.3±0.2±0.5±0.4Gain by Beam Tilt, average, dBi0 ° | 16.05 ° | 16.011 ° | 15.50 ° | 15.85 ° | 15.811 ° | 15.20 ° | 17.34 ° | 17.47 ° | 17.30 ° | 17.74 ° | 17.87 ° | 17.70 ° | 18.04 ° | 18.27 ° | 18.10 ° | 17.94 ° | 18.27 ° | 18.2Beamwidth, Horizontal Tolerance, degrees±1.2±1.9±3.4±3.8±4.7±3.7Beamwidth, Vertical Tolerance, degrees±0.6±0.5±0.3±0.2±0.3±0.2USLS, beampeak to 20° above beampeak, dB131417161715Front-to-Back Total Power at 180° ± 30°, dB262427252526CPR at Boresight, dB292220211921CPR at Sector, dB1411131195Mechanical SpecificationsEffective Projective Area (EPA), frontal0.37 m² | 3.983 ft²Effective Projective Area (EPA), lateral0.31 m² | 3.337 ft²Wind Loading @ Velocity, frontal396.0 N @ 150 km/h (89.0 lbf @ 150 km/h)Wind Loading @ Velocity, lateral333.0 N @ 150 km/h (74.9 lbf @ 150 km/h)Wind Loading @ Velocity, maximum762.0 N @ 150 km/h (171.3 lbf @ 150 km/h)Wind Loading @ Velocity, rear401.0 N @ 150 km/h (90.1 lbf @ 150 km/h)Wind Speed, maximum241 km/h (150 mph)Packaging and WeightsWidth, packed390 mm | 15.354 inDepth, packed296 mm | 11.654 inLength, packed2628 mm | 103.465 inWeight, gross32.8 kg | 72.312 lb

Please refer to the following attachments for additional details on the product.
