Cookie PolicyCorning D14401EB4R3A00F - Scapc Pushlok Tm Apc Smf-28e 1f Ro 1000ft D14401eb4r3a00f Secr

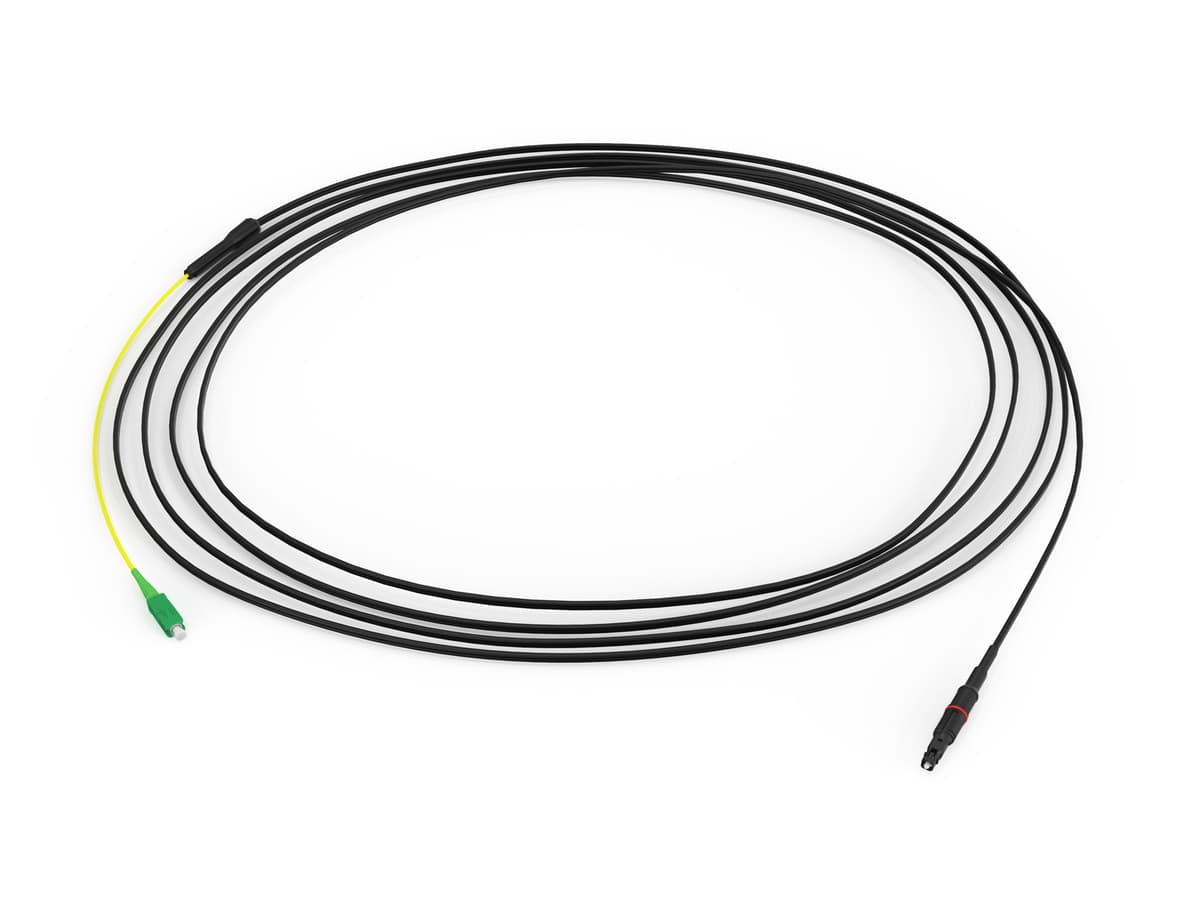

Corning D14401EB4R3A00F - Scapc Pushlok Tm Apc Smf-28e 1f Ro 1000ft D14401eb4r3a00f Secr
Please refer to the following attachments for additional details on the product.
- Fiber Category:
- Single-mode (OS2)
- Cable Assembly Type:
- Drop Assemblies
- Environment:
- Outdoor
Warranty
Functional on Delivery Guarantee
Installation Methods:Aerial Temperature Range, Operation:-40 °C to 70 °C (-40 °F to 158 °F ) Cold Mate/Demate:-40 °C (-40 °F) Axial Pull, Plug to Cable, Through the Dust Cap:444.82 N (100 lb) in axial pull with load applied to the dust cap Performance Option Code:01 Fiber Type:Single-mode (OS2) / 250 µm Fiber Name:Single-mode (OS2) Maximum Attenuation:0.4 dB/km / 0.4 dB/km / 0.3 dB/km Wavelengths:1310 nm / 1383 nm / 1550 nm Reflectance, Typical:> 65 dB (optical return loss) Insertion Loss, Typical:≤ 0.15 dB Reflectance, Typical:> 65 dB (optical return loss) Insertion Loss, Typical:≤ 0.15 dB Connector Type:SC Simplex
