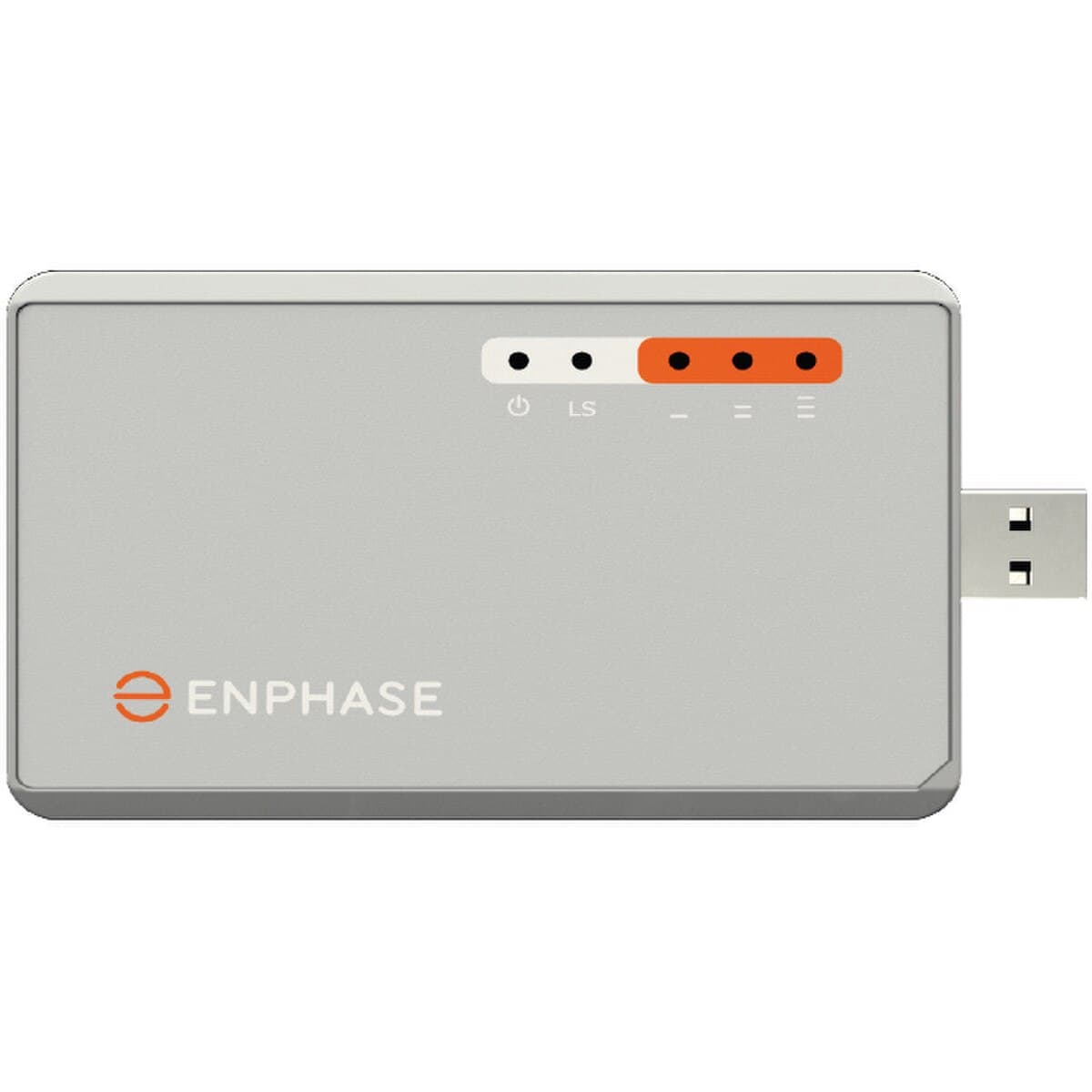

Enphase Energy CELLMODEM-M1-06-SP-05 - Ee
Slide 1 of 1
Manufacturer
Enphase Energy
MPN
CELLMODEM-M1-06-SP-05
Available
18
Condition
New
Enphase Energy CELLMODEM-M1-06-SP-05 - Ee
The Enphase Energy CELLMODEM-M1-06-SP-05 is a high-quality cellular modem designed for use with Enphase Energy solar systems. This modem allows for remote monitoring and management of your solar system, providing real-time data on energy production and system performance. It is compatible with Enphase microinverters and can be easily installed and connected to your existing system.
Specifications | |
GENERAL | |
| Performance | LTE CAT M1, EGPRS |
| Frequency band (MHz) | LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B39 (Cat M1 only) EGPRS: 850/900/1800/1900 MHz |
| Data plan duration | Five-year prepaid plan |
| Monitoring | Updates data to Enphase Installer Platform every six hours (at 3 a.m (03:00), 9 a.m (09:00),3 p.m (15:00), 9 p.m (21:00) local time) |
SUPPORTED SYSTEMS | |
| Grid tied systems | 3 Primary 4 connectivity for residential systems with up to 60 microinverters |
| Grid forming systems | Backup connectivity5 for IQ Battery systems |
POWER REQUIREMENTS | |
| Voltage | USB powered - 5 V |
CONNECTORS | |
| Internal RF antenna | 50 ohm SMT customized flex antenna |
| USB | Type A USB |
MECHANICAL DATA | |
| Dimensions (W × H × D) | 91 mm × 60 mm × 15 mm |
| Weight | 100 gms (approximate) |
| Chassis type | Plastic |
| Operating temperature | -40°C to 65°C |
| Storage temperature | -40°C to 65°C |
| Humidity | Relative humidity 15% to 93% |
| Environmental rating | If installed outdoors, install Mobile Connect cellular modem in NEMA 3R or IP54-rated enclosure. |
