Manufacturer
Ericsson
MPN
RDH901008/1
Available
1
Condition
New

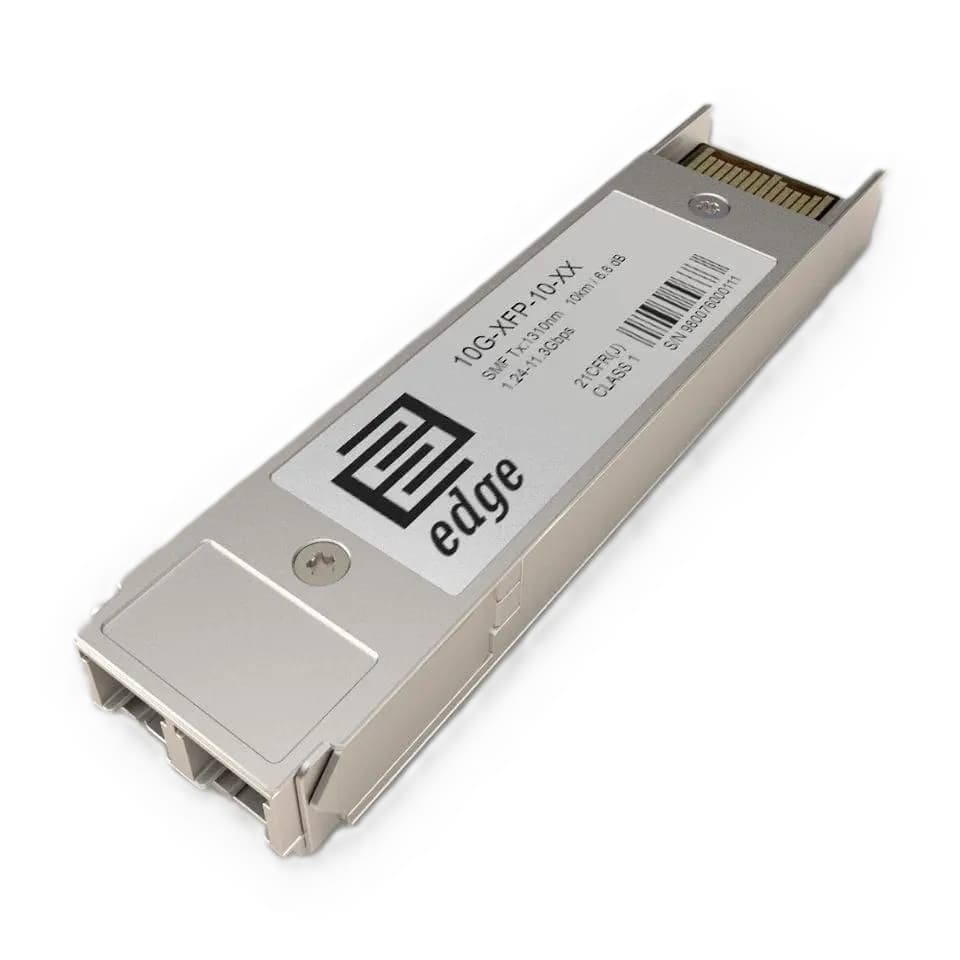

Ericsson RDH901008/1 - Interface, Module, Xfplr 10gb/s 10km
The Ericsson RDH901008/1 is a high-performance interface module designed for use in telecommunications networks. This module is equipped with a 10 gigabits per second (10Gb/s) transceiver, allowing for fast and reliable data transmission over long distances of up to 10 kilometers. It is compatible with a variety of network equipment and can be easily integrated into existing systems.
Key Technical Data | |
|---|---|
| Media Type: | Single-Mode Fiber (SMF) |
| TX Wavelength: | 1310 nm |
| RX Wavelength: | 1310 nm. |
| Minimum Optical Budget: | 6.8 dB |
| Maximum Distance: | 10km |
| Supported Data Rate: | 1.24-11.32Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), STM-16 (2.488 Gbps), STM-64 (9.95Gbps), ODU0 (1.244Gbps), ODU1 (2.498Gbps), ODU2 (10.037Gbps), ODU2e (10.399Gbps), OTU1 (2.66Gbps), OTU2 (10.70Gbps), OTU1f (11.27Gbps), OTU2f (11.32Gbps), OTU1e (11.049Gbps), OTU2e (11.095Gps) |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 100 nm (1260-1360 nm) |
| Rx Wavelength Bandwidth: | 100 nm (1260-1360 nm) |
| Minimum Transmitting Power: | -8.2 dB |
| Maximum Transmitting Power: | 1 dB |
| Receiver Sensitivity: | -15 dBm |
| Receiver Overload: | 0.5 dBm |
| Dispersion: | 70-100 ps/nm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| CDR (Clock and Data Recovery) chip | Supported |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
