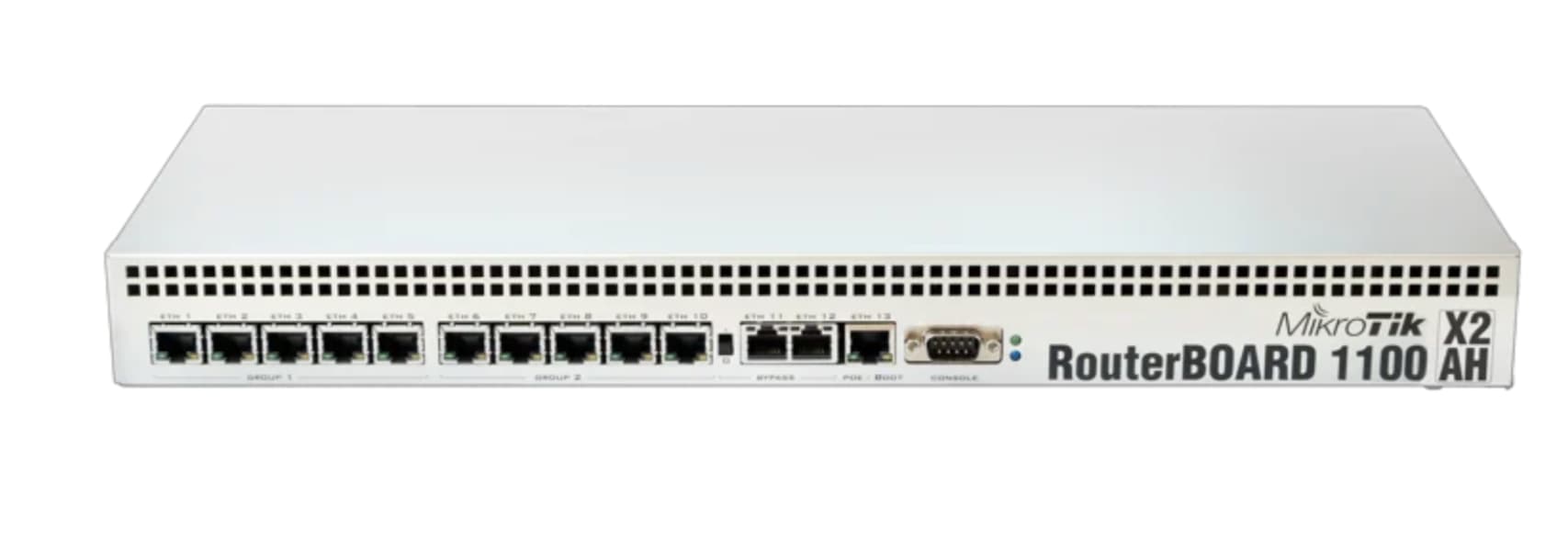

MikroTik RB1100AHx2 - Gigabit Ethernet Router - Dual Core CPU
Slide 1 of 1
Manufacturer
MikroTik
MPN
RB1100AHx2
Available
3
Condition
New
MikroTik RB1100AHx2 - Gigabit Ethernet Router - Dual Core CPU
The MikroTik RB1100AHx2 is a high-performance Gigabit Ethernet router designed for professional use. It features a powerful dual-core CPU, making it capable of handling heavy network traffic and providing fast data transfer speeds. The RB1100AHx2 is a top-of-the-line model that offers advanced features and robust performance.
With its Gigabit Ethernet ports, this router can support high-speed connections for multiple devices simultaneously. It also has a built-in hardware encryption engine, ensuring secure data transmission over the network. The RB1100AHx2 is equipped with a user-friendly interface, making it easy to set up and manage.
Specifications | |
| Architecture | PPC |
| CPU | P202ASSE2KFB |
| CPU core count | 2 |
| CPU nominal frequency | 1066 MHz |
| CPU Threads count | 2 |
| Switch chip model | AR8327-BL1A-R |
| Dimensions | 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -35°C to 70°C |
Powering | |
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage | 7-28 V |
| Max power consumption | 25 W |
| PoE in | Passive PoE |
| Cooling type | 2 fans |
| PoE in input Voltage | 10-28 V |
Ethernet | |
| 10/100/1000 Ethernet ports | 13 |
Peripherals | |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
Other | |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
