MikroTik RBcAPGi-5acD2nD-XL – Access Point – Dual-Band Wi-Fi
Slide 1 of 1
Manufacturer
Mikrotik
MPN
RBcAPGi-5acD2nD-XL-US
Available
0
Condition
New

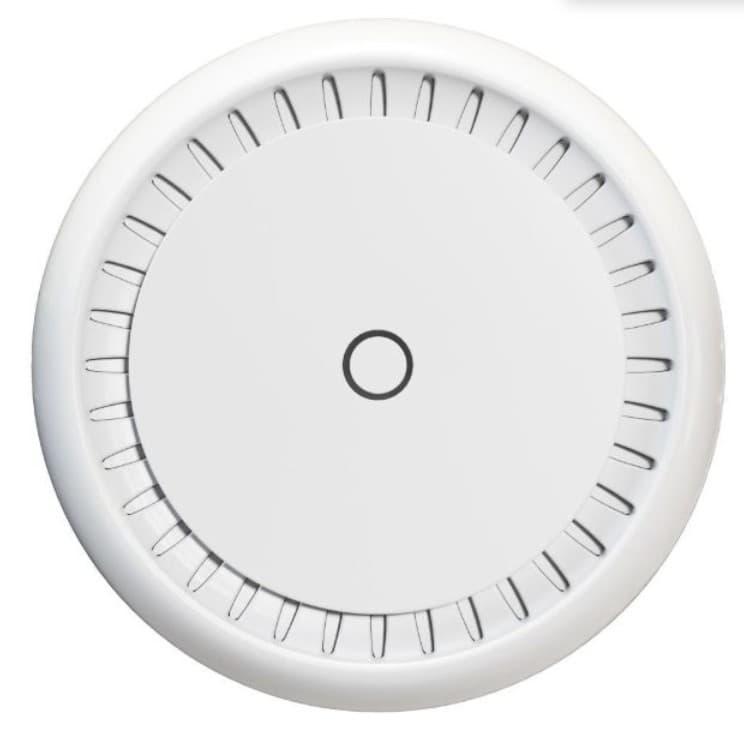

MikroTik RBcAPGi-5acD2nD-XL – Access Point – Dual-Band Wi-Fi
The MikroTik RBcAPGi-5acD2nD-XL is a high-performance access point that offers dual-band Wi-Fi connectivity for your home or office network. It also features a built-in dual-chain wireless radio, allowing for simultaneous connections on both bands.
This access point is designed for easy installation and can be mounted on a wall or ceiling for optimal coverage. It also comes with a Gigabit Ethernet port for high-speed wired connections.
Specifications | |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Wireless capabilities | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 6 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| AC speed | AC1200 |
Ethernet | |
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 24 W |
| Max power consumption without attachments | 11 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 17-57 V |
PoE-out | |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 500 mA |
| Max out per port output (input 30-57 V) | 330 mA |
| Max total out (A) | 500 mA |
