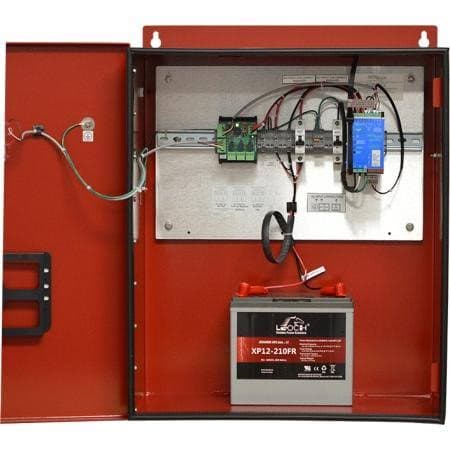

Newmar PE-12V-120-55AH-UL2524 - Newmar Dc Power Enclosure-pe Series Bbu-nfpa Compliant-55a/h

Newmar Dc Power Enclosure-pe Series Bbu-nfpa Compliant-55a/h

NEWMAR's public safety PE UL 2524 series power enclosures are ETL listed to UL standards 2524 and 924, providing NFPA compliant battery backup power for all bidirectional amplifiers. Broad offering: 12, 24, and 48 VDC, and 110 VAC; 18 – 100 Ah range. Features  -ETL certified to UL standards 2524 and 924, NFPA compliant,  All required monitoring alarms and indicators.  Batteries included.  NEMA 4 enclosure.  Pre-wired and lightweight for easy one-man installation.

Technical Specs

Enclosure Type: Aluminum

Enclosure Rating: NEMA 4X

Enclosure Mount Type: Wall, Pole, Wall, Pole

DC Input Voltage: 0 V

Power Interface: Terminal Block

AC Input Voltage: 120 V

Crowbar Protection: Yes

Operating Temperature Range: 0-50 deg C

AC Input Voltage Range: 115-230 V

Nominal DC Output Voltage: 12 V
