Newmar RM-648HE - 600W 48V DC Modular rect Sentinel sys

600W 48V DC Modular rect Sentinel sys

The Newmar RM-648HE is a high-efficiency 600W 48V DC modular rectifier that is part of the Sentinel power system. The RM-648HE features a modular design, allowing for easy installation and maintenance. It is also hot-swappable, meaning it can be replaced without interrupting power to the connected devices. With a high efficiency rating, the RM-648HE helps to reduce energy costs and minimize heat generation.

It also has a wide input voltage range of 90-264VAC, making it suitable for use in different regions. The Newmar RM-648HE is equipped with advanced protection features, including overvoltage, overcurrent, and overtemperature protection. This ensures the safety of the connected devices and the rectifier itself. This 48V DC modular rectifier is part of the Sentinel power system, which allows for easy scalability and expansion. It can be used in conjunction with other modules to meet the power requirements of larger systems.

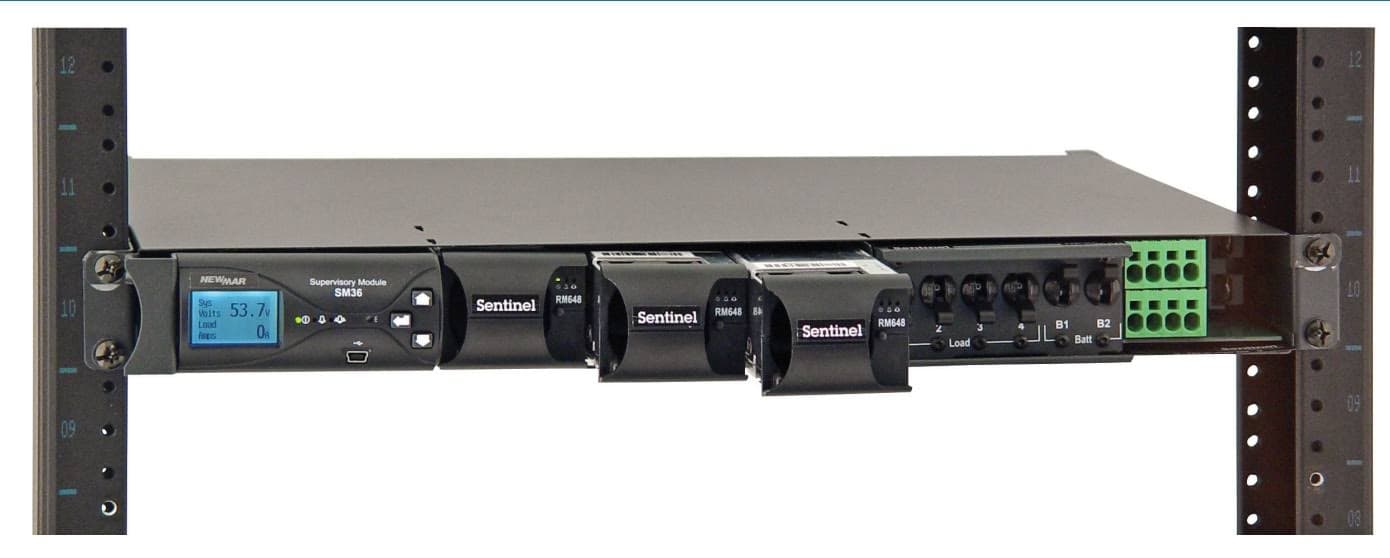

Sentinel Power System - Incredible Functionality in a 1 RU DC Power System, 600 to 1800 Watts

- 19'', 1U rackmount shelf with integrated power distribution and SNMP digital controller

- 90-250 VAC input, power factor corrected, no derating at 120V input

- 3 power bays accept 600 watt modular rectifiers, -48V

- 33 amp, 1800 watt total output capacity

- Output temperature compensated for precise battery charging

- 4 DC circuit breaker distribution capacity, with tripped breaker alarm

- Master disconnect breaker for two battery banks, with tripped breaker alarm

- Controller with digital display of system parameters with TCP/IP interface and SNMP monitoring and logging

- Alarm contacts monitor system functions

- Low voltage disconnect built-in

- Easily configures to meet site power requirments
