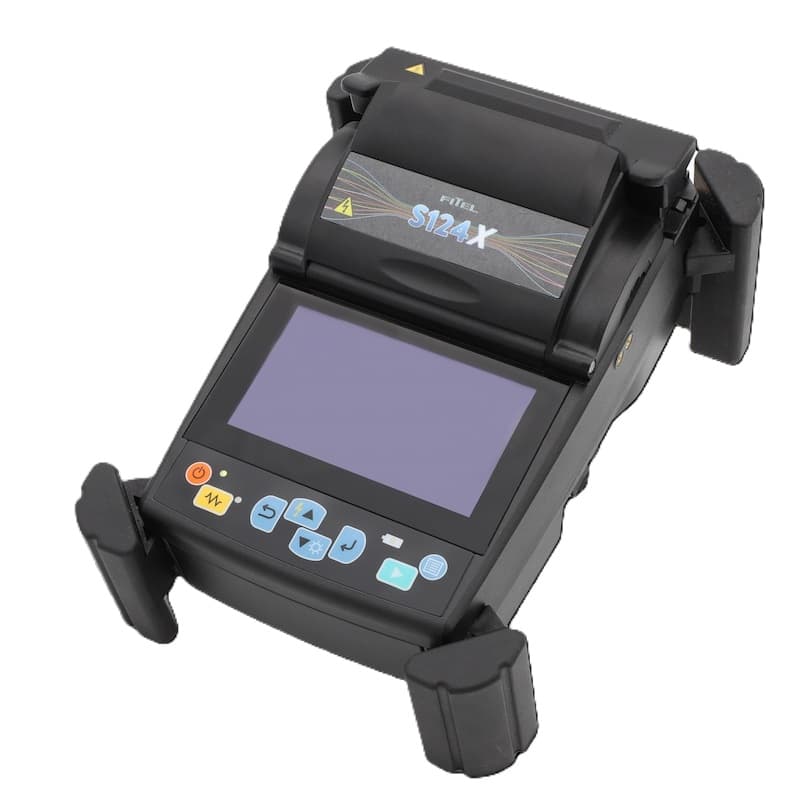

OFS S124X-KIT - S124x-kit Ribbon Fusion Splicer Kit
Slide 1 of 1
Manufacturer
OFS
MPN
S124X-KIT
Available
1
Condition
New
OFS S124X-KIT - S124x-kit Ribbon Fusion Splicer Kit
This kit includes the S124x-kit Ribbon Fusion Splicer, which is a compact and lightweight splicer that can handle up to 12 fibers at once. It also comes with a range of accessories and tools to make the splicing process easier and more precise. The S124x-kit Ribbon Fusion Splicer is equipped with advanced features such as automatic arc calibration, automatic fiber identification, and automatic splice loss estimation.
This ensures that the splicing process is accurate and consistent, resulting in high-quality splices every time. The kit also includes a high-resolution color LCD screen for easy viewing and operation, as well as a built-in battery for convenient use in the field.
FEATURES
Easily exchangeable fiber guide V-grooves
Up to 12-fiber ribbon splicing
15-second-high speed splicing operation
Applicable for both 250 μm and 200 μm pitch ribbon fiber
Simple operation with touch panel and GUI
3 Bright LED’s to illuminate the operation area
Wi-Fi connectivity for smartphone data management and control
| Applicable Fiber Types: | SMF (G.652/G.657), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657B3) |
| Ribbon Capacity: | 2, 4, 6, 8, 12, or 16 fibers |
| Cladding Diameter: | 125 µm |
| Coating Diameter: | Single fiber: 200/250/900 µm; Ribbon fiber: 200/250 µm |
| Cleave Length: | 10 mm |
| Typical Splice Loss: | SMF ~0.05 dB, MMF ~0.03 dB, DSF/NZDSF ~0.08 dB |
| Typical Splice Time: | ~13 seconds (single), ~15 seconds (12-fiber), ~23 seconds (16-fiber) |
| Typical Heating Time: | ~13 seconds (single), ~28 seconds (ribbon, 60 mm sleeve) |
| Number of Splice/Heat Profiles: | 300 splice, 100 heat |
| Tensile Test: | 1.96 N |
| Arc Compensation: | Automatic environmental correction |
| Operating Temperature: | -10°C to +50°C |
| Storage Temperature: | -40°C to +60°C |
| Dimensions: | 138 mm (W) × 158 mm (D) × 150 mm (H) |
| Weight: | Approx. 2.2 kg (with battery) |
Please refer to the following attachments for additional details on the product.
