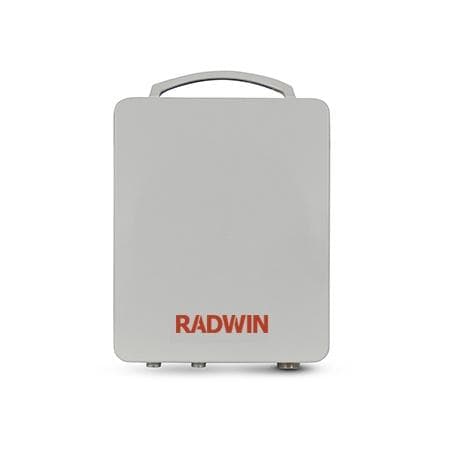

Radwin RW-2050-D200 - 5.8GHz 2000 D-Plus Connectorized ODU
Slide 1 of 1
Manufacturer
Radwin
MPN
RW-2050-D200
Available
0
Condition
New
5.8GHz 2000 D-Plus Connectorized ODU
The Radwin RW-2050-D200 is a high-performance outdoor unit (ODU) designed for wireless communication in the 5.8GHz frequency band. It is equipped with a 2000 D-Plus connector, making it compatible with a wide range of antennas and accessories.
It offers a maximum data rate of 200 Mbps and supports advanced features such as adaptive modulation and coding, QoS, and VLAN tagging. The RW-2050-D200 is built to withstand harsh outdoor environments, with an IP67-rated enclosure that protects it from dust, water, and extreme temperatures.
Features:
- Telco-grade, extremely robust in harsh conditions
- Supports intra-site and inter-site synchronization to maximize capacity
- Configurable asymmetric throughput
- Advanced OFDM & MIMO technologies for operation in nLOS/NLOS and dense radio environments
Specifications | |
| Broadband Frequency Band | 5 GHz, 5.4 GHz, 5.8 GHz |
| Mounting | Included |
| Broadband Antenna Type | Connectorized |
| Data Rate | 750 Mbit/s |
| Channel Bandwidth | 80MHz | 10MHz | 20MHz | 40MHz |
| Broadband System Configuration | All Outdoor |
| Range | Up to 40 km / 25 miles |
| Modulation | 2x2 MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
| DFS | Not Supported (for the default band) |
| Diversity | Supported |
| Spectrum Viewer | Supported |
| Max Tx Power | 25 dBm |
| Duplex Technology | TDD |
| Error Correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Encryption | AES 128; FIPS 197 |
| ODU Dimensions | 28(w) x 19.5(h) x 8(d) cm 11.02" W x 7.67" H x 3.14" L inch |
| ODU Weight | 2.4 kg / 5.29 lbs |
| Power Feeding | Power provided over ODU-IDU cable |
| Power Consumption | <20W |
| Operating Temperatures | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing, IP67 (totally protected against dust and against immersion up to 1m) |
Please refer to the following attachments for additional details on the product.
