Supermicro ARS-E103-JONX-H2-01-G2 - Fanless Jetson Orin NX Edge AI System, 16GB LPDDR5X, 256GB NVMe, 10GbE
Slide 1 of 1
SA
Manufacturer
Supermicro
MPN
ARS-E103-JONX-H2-01-G2
Available
0
Condition
New

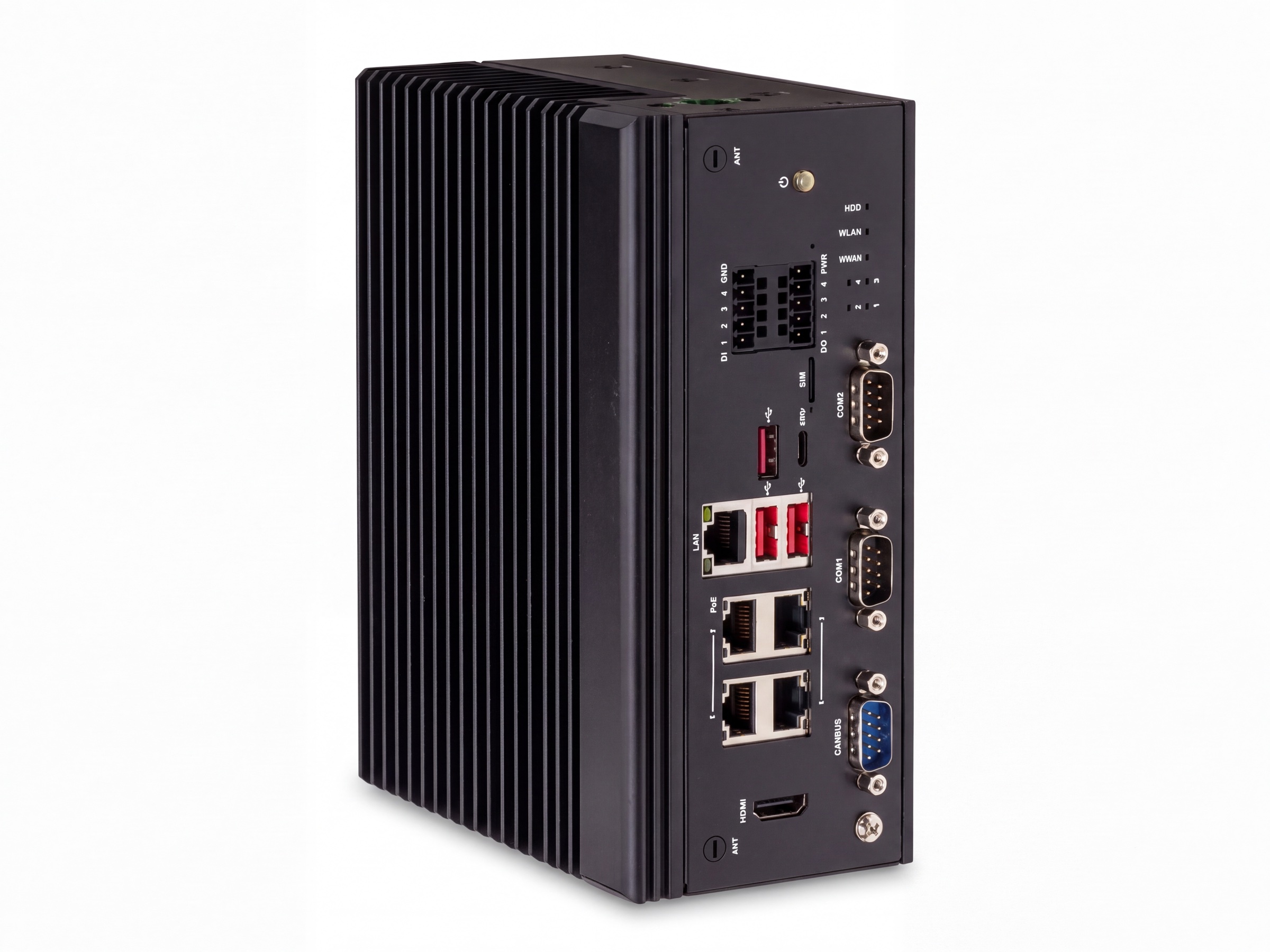

The Supermicro ARS-E103-JONX-H2-01-G2 is the Gold Series, pre-configured version of the ARS-E103-JONX-H2 compact fanless IoT/embedded edge AI system. It is built on the Super AOM-JSOR-001 board with an NVIDIA Jetson Orin NX module providing an 8-core Arm Cortex-A78AE v8.2 64-bit CPU (8C/8T, 6MB cache) plus a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, rated by Supermicro at up to 157 TOPS. Memory is 16GB onboard ECC LPDDR5X, and the Gold pre-configuration ships with a 256GB M.2 NVMe 80mm SSD.
- Networking: 3x 1GbE RJ45 (Intel I210-IT), 1x 10GbE RJ45 (Marvell AQC113) and 1x 1GbE RJ45 from the SoC

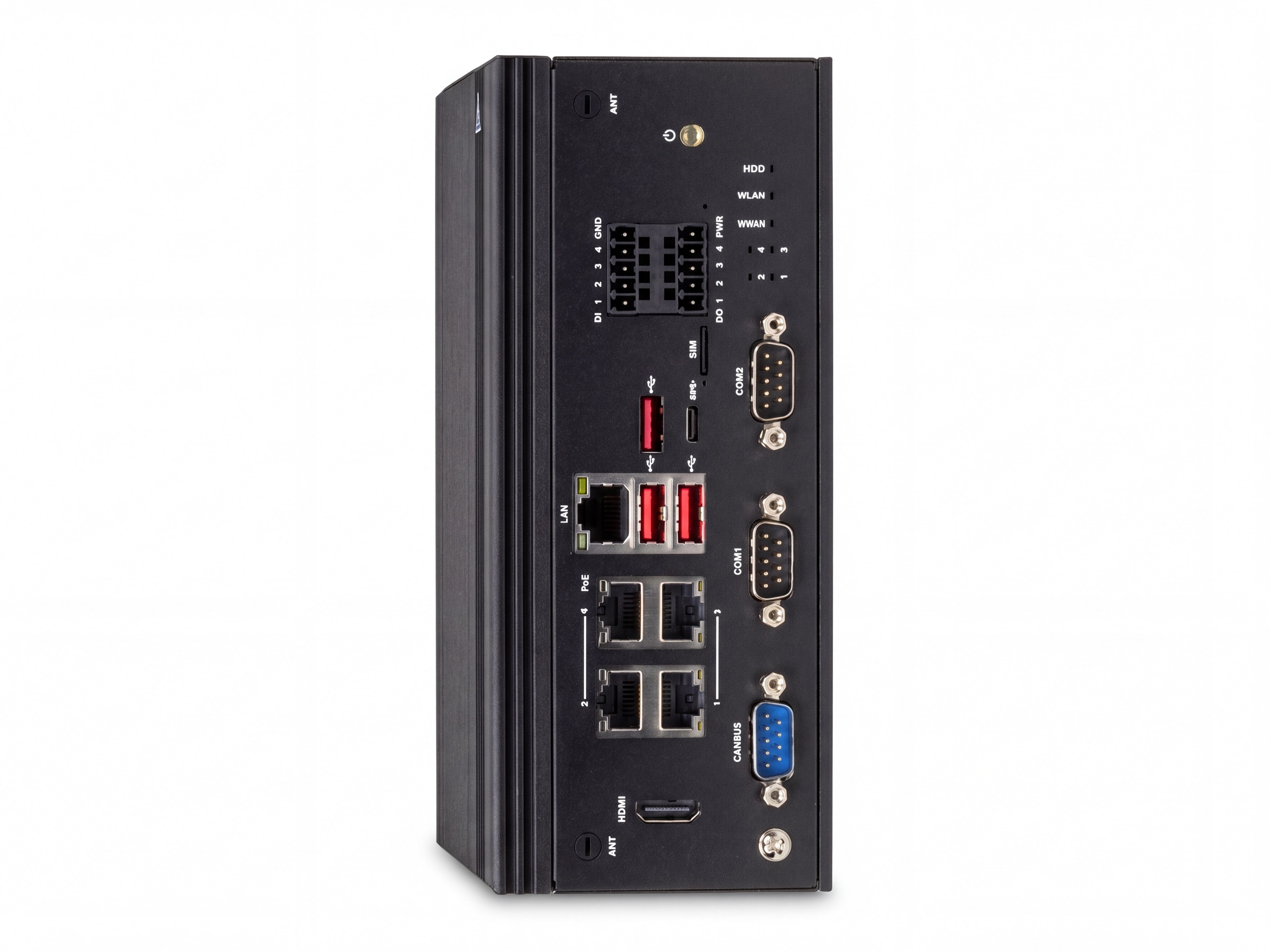

- Front I/O: 1x USB 3.2 Gen2 Type-C, 3x USB 3.2 Gen2 Type-A, 1x HDMI 2.0, 2x RS-232/422/485 COM, 1x CANBus, 4 DI / 4 DO terminal block
- Expansion: M.2 E-key 2230 (PCIe 4.0 x1 / USB 2.0), M.2 B-key 3052/3042 with dual nano-SIM, M.2 M-key 2280 PCIe 4.0 x4 NVMe

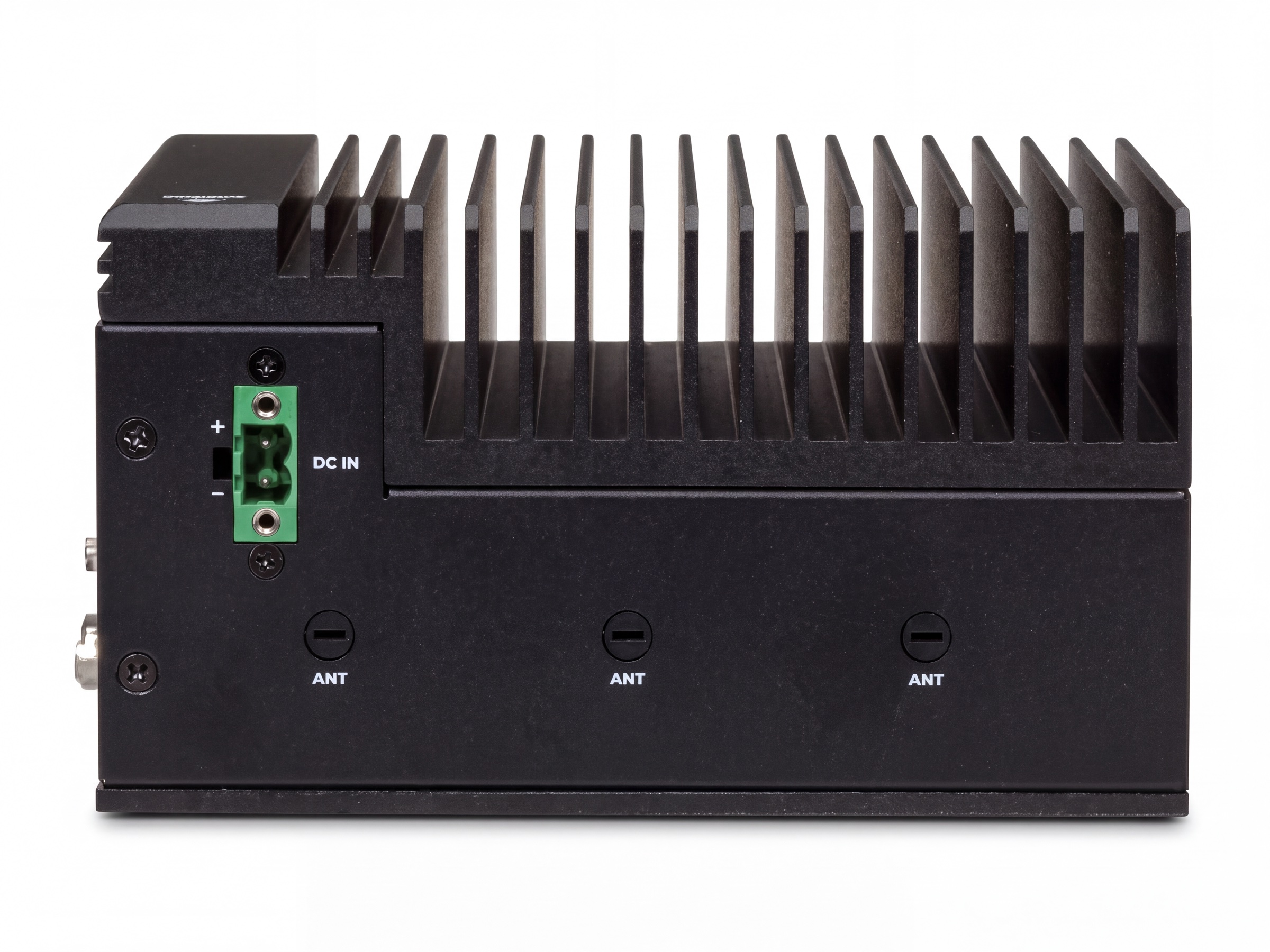

- Power and environment: 9~36V DC input on a 2-pin terminal block; fanless CSE-E102L chassis rated -25°C to 60°C with 0.7 m/s airflow; DIN-rail mountable
Supermicro lists key applications as imaging and computer vision, industrial automation, healthcare, artificial intelligence and digital signage / PoS.
- gpu:
- 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, up to 157 TOPS
- color:
- Black
- memory:
- 16GB ECC LPDDR5X onboard
- cooling:
- Fanless (no system fans)
- storage:
- 1x 256GB M.2 NVMe 80mm SSD (Gold Series pre-configuration)
- mounting:

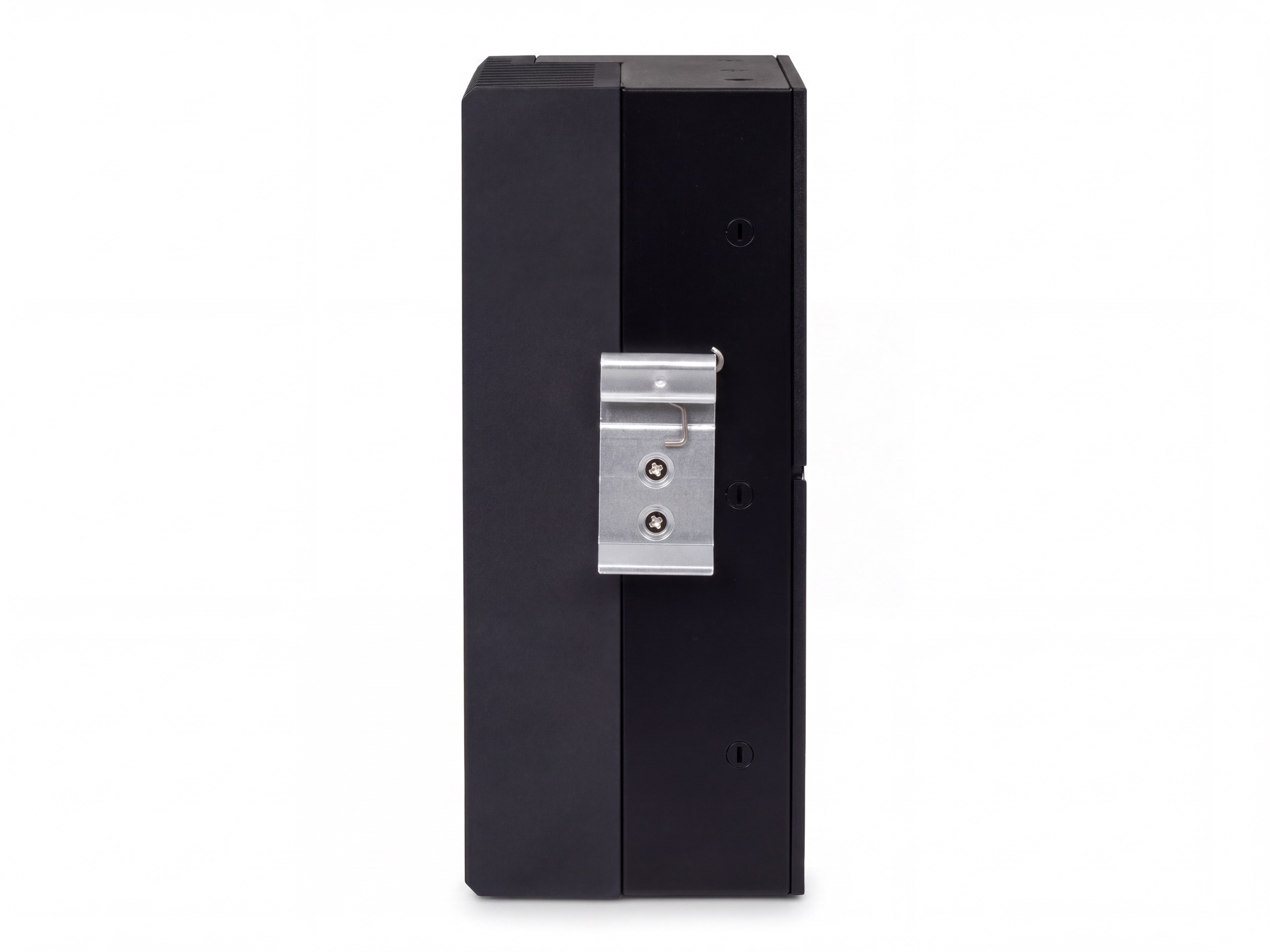

- Fanless DIN rail mounted system (optional DIN rail kit MCP-290-10201-0N for 35mm DIN rail)
- other_io:
- 1x CANBus port; 1x 4 DI / 4 DO terminal block port
- lan_ports:
- 3x RJ45 1GbE (Intel I210-IT), 1x RJ45 10GbE (Marvell AQC113), 1x RJ45 1GbE (SoC)
- processor:
- NVIDIA Jetson Orin NX module, Arm Cortex-A78AE v8.2 64-bit CPU, 8C/8T, 6MB cache
- usb_ports:
- 1x USB 3.2 Gen2 Type-C (front), 3x USB 3.2 Gen2 Type-A (front)
- compliance:
- RoHS Compliant
- form_factor:
- Fanless Embedded
- motherboard:
- Super AOM-JSOR-001
- gross_weight:
- 4.3 lbs (1.95 kg)
- serial_ports:
- 2x COM RS232/RS422/RS485 ports (front)
- video_output:
- 1x HDMI 2.0 port (front)
- chassis_model:
- CSE-E102L
- input_voltage:
- +9~36V DC power input (2-pin terminal block)
- storage_slots:
- 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280 default)
- expansion_slots:
- 1 M.2 PCIe 4.0 x1 (E-key 2230 default, USB 2.0); 1 M.2 (B-key 3052 default/3042, USB 3.0)
- key_applications:
- Imaging and computer vision, industrial automation, healthcare, artificial intelligence, digital signage / PoS
- operating_humidity:
- 8% to 80% (non-condensing)
- package_dimensions:
- 7.87" (H) x 11.42" (W) x 9.06" (D)
- operating_temperature:
- -25°C to 60°C (-13°F to 140°F) with 0.7 m/s airflow
- non_operating_temperature:
- -40°C to 60°C (-40°F to 140°F)
