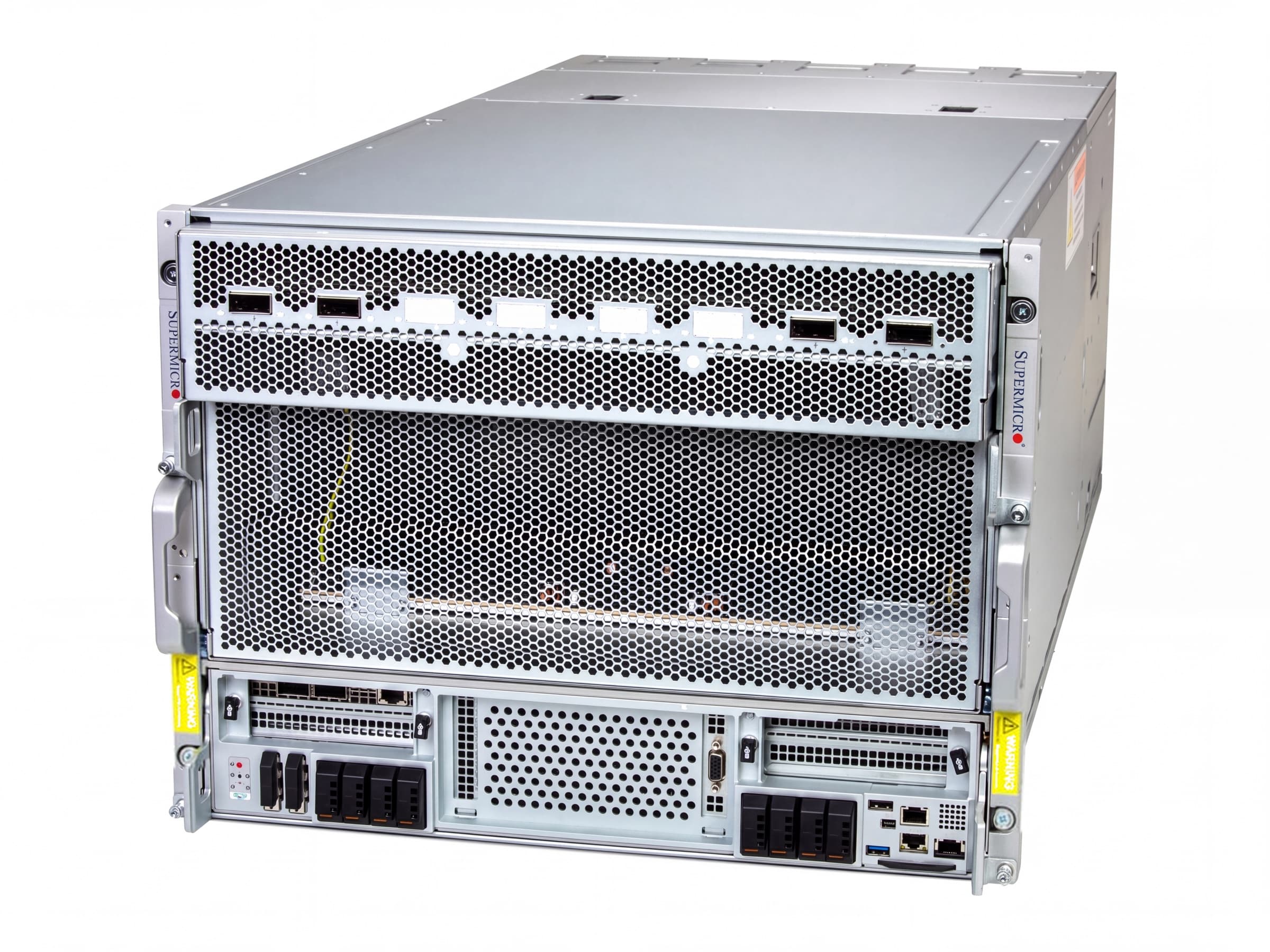

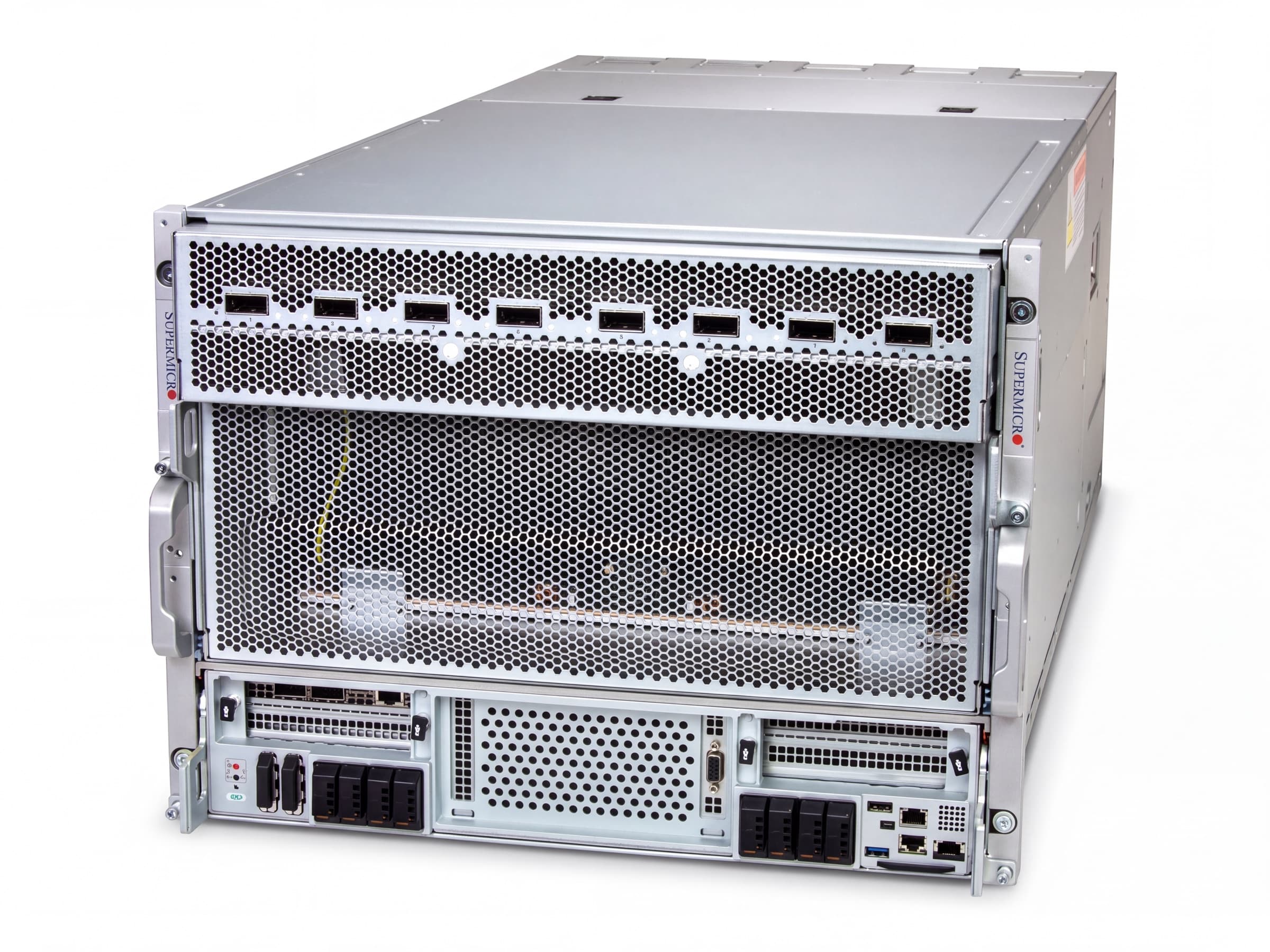

Supermicro AS -8126GS-NB3RT-01-G2 - 8U Gold Series GPU A+ Server, NVIDIA HGX B300 8-GPU, Dual EPYC 9575F
Slide 1 of 1
Manufacturer
Supermicro
MPN
AS-8126GS-NB3RT-01-G2
Available
0
Condition
New
<p>The <b>Supermicro AS -8126GS-NB3RT-01-G2</b> is a Gold Series (ready-to-ship) pre-configured version of the AS -8126GS-NB3RT 8U rackmount GPU A+ SuperServer, built on the Super H14DSG-OM motherboard in the CSE-GP807TS-R000NP chassis. It is aimed at AI/deep-learning training and inference, large language model and generative AI workloads, HPC, analytics, scientific research and autonomous vehicle development.</p> <p>As shipped, this SKU is configured with:</p> <ul> <li>Dual AMD EPYC 9575F 64-core processors</li> <li>One NVIDIA Blackwell HGX B300 NVL8 (8-GPU) baseboard with 5th generation NVLink and NVSwitch</li> <li>24 x 128GB DDR5-6400 RDIMM (3TB total) in 24 DIMM slots</li> <li>8 x 7.68TB E1.S NVMe hot-swap drives plus 2 x 1.9TB M.2 NVMe boot drives</li> <li>8-port 800GbE networking, 2 x dual-port 200GbE QSFP112 ConnectX-7 adapters and onboard 10GbE RJ45 LAN</li> <li>6 x 6600W redundant (3+3) Titanium Level (96%) power supplies</li> </ul> <p>Two PCIe 5.0 x16 FHHL slots are available by default, cooling uses up to 12 heavy-duty fans with fan speed control, and security features include TPM 2.0 and a NIST 800-193 compliant Silicon Root of Trust. Supermicro notes that customers should contact them before purchasing this server.</p>
- color:
- Silver
- cooling:
- Up to 12 heavy duty fans with optimal fan speed control
- security:
- TPM 2.0, Silicon Root of Trust (RoT) - NIST 800-193 Compliant
- bios_type:
- AMI 64MB UEFI
- usb_ports:
- 1 USB 3.0 Type-A (Front), 1 USB 2.0 Type-A (Front)
- drive_bays:
- 8 front hot-swap E1.S NVMe drive bays
- gpu_memory:
- 2.3TB HBM3e GPU memory per system
- memory_max:
- 24 DIMM slots, up to 6TB 6400MT/s ECC DDR5 RDIMM (1DPC)
- boot_drives:
- 2 x 1.9TB M.2 NVMe SSD
- form_factor:
- 8U Rackmount / 1 Node
- motherboard:
- Super H14DSG-OM
- power_input:
- 5900W: 200-207.9Vac / 50-60Hz to 6600W: 239-240Vac / 50-60Hz
- power_supply:
- 6x 6600W Redundant (3 + 3) Titanium Level (96%)
- video_output:
- 1 VGA port, 1 mini-DP port
- chassis_model:
- CSE-GP807TS-R000NP
- gpu_installed:
- 1 NVIDIA Blackwell HGX B300 NVL8 (8-GPU)
- network_ports:
- 8-Port 800GbE + 2 CX7 2 x 200GbE QSFP112 + 10GbE RJ45 LAN Ports (on board)
- expansion_slots:
- Default: 2 PCIe 5.0 x16 FHHL slots
- gpu_interconnect:
- NVIDIA NVLink with NVSwitch; 5th Generation NVLink 1.8TB/s
- memory_installed:
- 24 x 128GB DDR5-6400 RDIMM (3TB)
- storage_installed:
- 8 x 7.68TB NVMe E1.S SSD
- operating_humidity:
- 8% to 90% (non-condensing)
- processor_installed:
- Dual AMD EPYC 9575F Processors (64-Core, 3.3GHz)
- cpu_gpu_interconnect:
- PCIe 5.0 x16 CPU-to-GPU Interconnect
- operating_temperature:
- 10°C to 35°C (50°F to 95°F)
