Manufacturer
Ubiquiti Networks
MPN
LTU-Rocket
Available
0
Condition
New

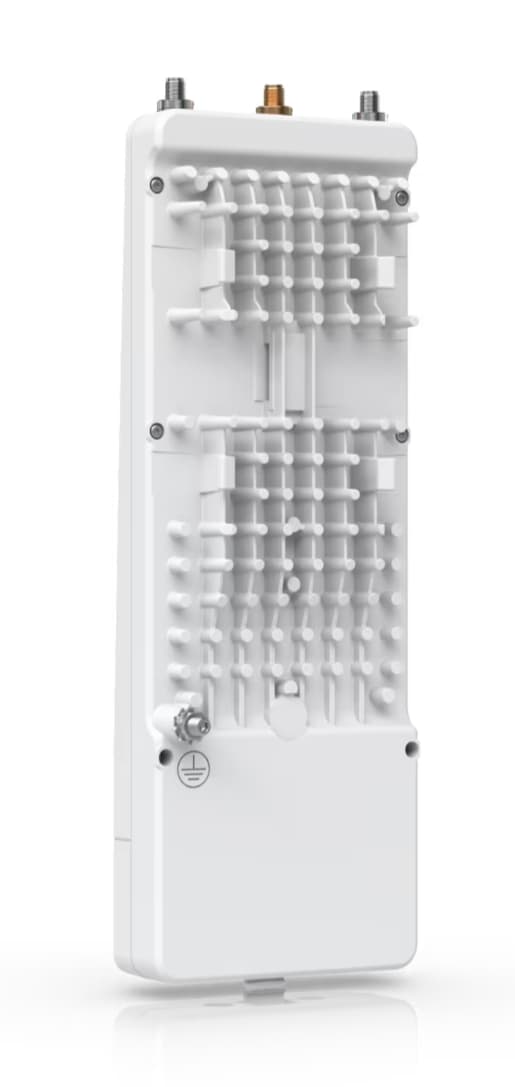

Ubiquiti LTU-ROCKET - 5GHz PtMP Base Station - 10/20/30/40/50MHz
The Ubiquiti LTU-ROCKET is a powerful 5GHz PtMP (Point-to-Multipoint) base station designed for high-performance wireless networking. This base station is capable of operating in various channel bandwidths, including 10/20/30/40/50MHz, providing flexibility for different network setups and environments.
The LTU-ROCKET is designed for use in Point-to-Multipoint networks, where it can serve multiple client devices simultaneously. It is ideal for applications such as wireless internet service providers (WISPs), campus-wide WiFi coverage, and surveillance systems.
Mechanical | |
|---|---|
| Dimensions | 244 x 82 x 48 mm (9.6 x 3.2 x 1.9") |
| Weight | 468 g (1 lb) |
| Enclosure material | Diecast aluminum, polycarbonate |
| Mount material | Metal, polycarbonate |
| Mounting | Integrated pole mount (Kit included) GPS pole mount (Kit included) Rocket mount compatible |
| Weatherproofing | IP67 |
Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-) |
| Power supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported voltage range | 18—54V DC |
| Max. power consumption | 24W |
| RF connections | (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS) |
| GPS | Yes |
| GPS antenna | External magnetic base |
| Button | Factory reset |
| Ambient operating temperature | -40° to 55° C (-40° to 131° F) |
Software | |
| Mode | PtMP BaseStation radio |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS or Android based smartphone |
System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Packets per second | 2+ million |
| Supported clients count | 100+ |
| Maximum range | 100+ km* * Throughput and range values may vary depending on the environmental conditions. |
| Encryption | WPA2-PSK (AES) |
| Uplink/Downlink ratio | 25/75, 33/67, 50/50 |
RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 4800 - 6200 MHz *Depends on regulatory region. |
| Max. conducted TX power | 29 dBm |
| Channel bandwidth | 10/20/30/40/50/60/80/100* MHz *FW version 2.3.0 and later. |
| Management radio | 2400 - 2483.5 MHz |
Please refer to the following attachments for additional details on the product.
