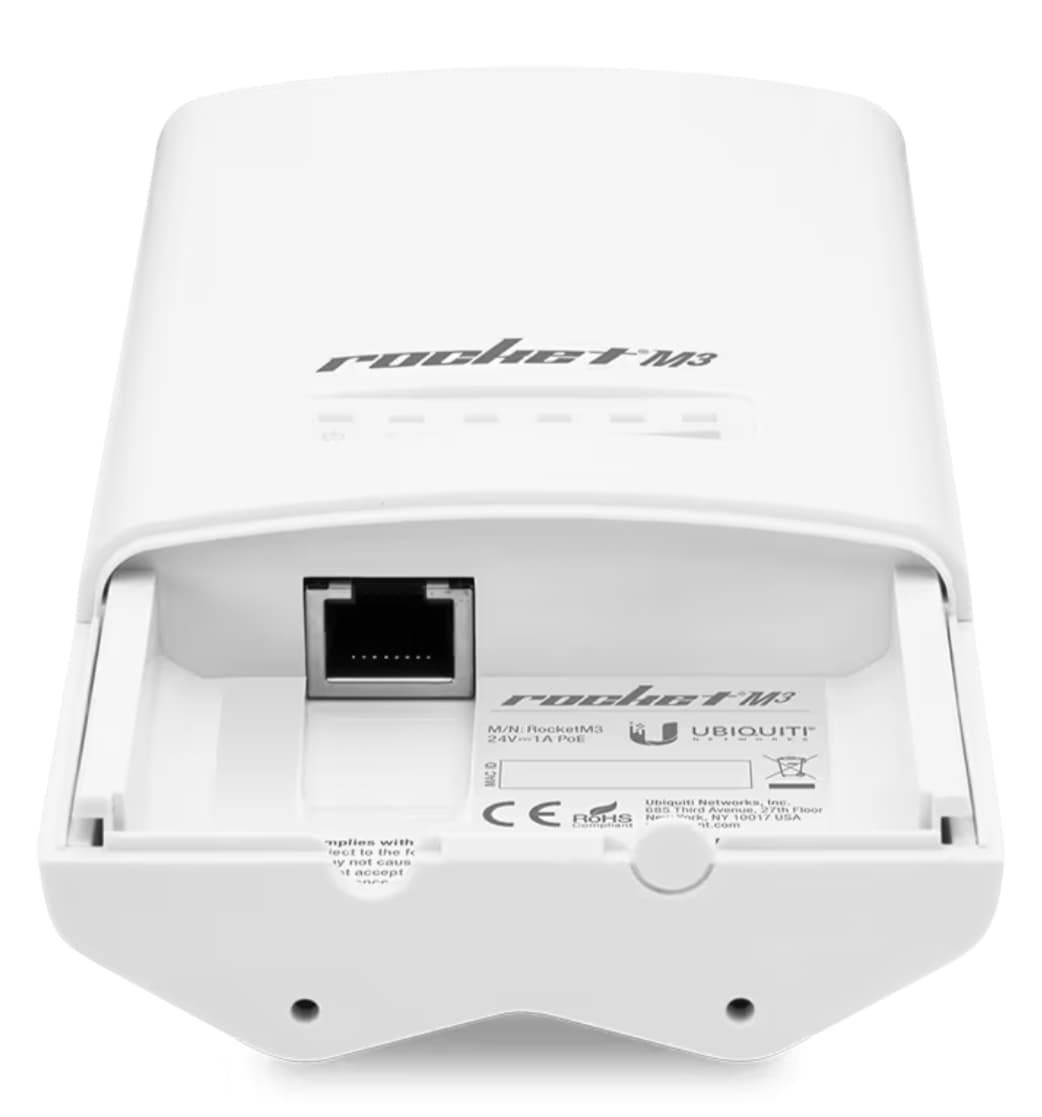

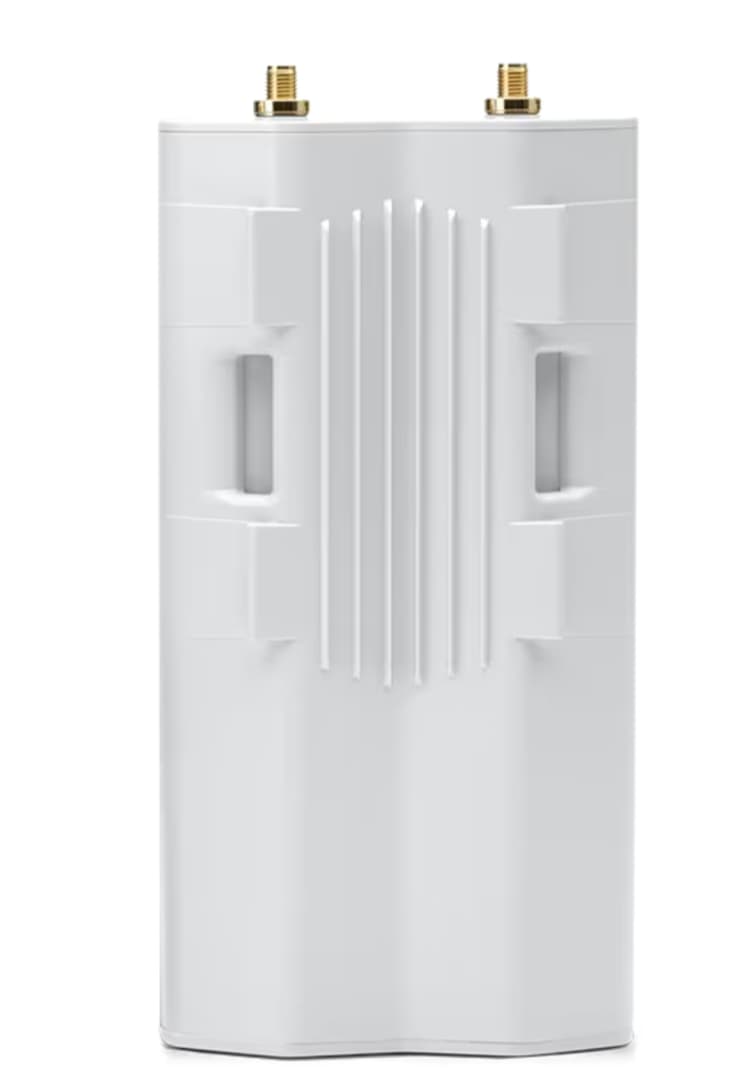

Ubiquiti ROCKETM3 - Wireless BaseStation - 3GHz MIMO
Slide 1 of 4
Manufacturer
Ubiquiti Networks
MPN
RocketM3
Available
3
Condition
New
Ubiquiti ROCKETM3 - Wireless BaseStation - 3GHz MIMO
The Ubiquiti ROCKETM3 is a high-performance wireless base station designed for use in 3GHz frequency bands. It features MIMO technology, allowing for increased data throughput and improved network performance. The ROCKETM3 is a powerful and versatile device that can be used as a base station for point-to-point or point-to-multipoint wireless networks.
It is equipped with advanced airMax technology, which allows for long-range connectivity and improved noise immunity, ensuring a stable and reliable connection even in challenging environments. It also supports various networking protocols, including TCP/IP, UDP, ICMP, and DHCP, making it compatible with a wide range of devices and network configurations.
Specifications | |
|---|---|
Mechanical | |
| Dimensions | 160 x 80 x 30 mm (6.3 x 3.2 x 1.2") |
| Weight | 500 g (1.1 lb) |
| Enclosure material | UV-stabilized plastic |
Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8) |
| Power supply | 24V, 1A PoE adapter (Included) |
| Max. power consumption | 6.5W |
| Supported voltage range | 20–27V DC |
| RF connectors | (2) RP-SMA (waterproof) |
| Operating frequency | 3400 - 3730 MHz* *RocketM3 not supported in the USA. |
| Shock and vibration | ETSI300-019-1.4 |
| Ambient operating temperature | -30 to 75° C (-22 to 167° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
Software | |
| Operating mode | Access Point, station |
| Software management | Bluetooth management for easy setup over UISP Mobile app WEB UI |
| Minimum software requirements | Any modern web browser/iOS or Android based smartphone |
| Security | WPA2 AES only |
| Services | Services web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing |
| Utilities | Antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test |
