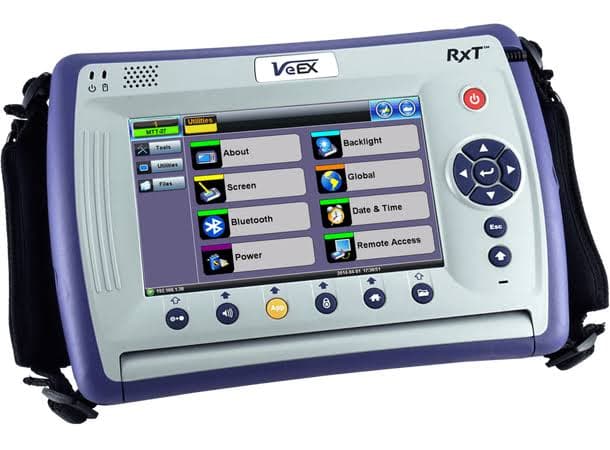

VeEX Inc Z0788032P Rxt1200 Smart Productivity Test Platform

Rxt-1200 Smart Productivity Test Platform - Rxt-4113 Cwdm/dwdm Otdr Test Module

It is a versatile and powerful tool that is perfect for testing and troubleshooting various network technologies, including Ethernet, IP, and SONET/SDH. This test platform is equipped with advanced features and capabilities, making it an essential tool for network engineers, technicians, and service providers.

It is designed to streamline testing processes and increase productivity, making it an ideal choice for both lab and field testing. The Z0788032P Rxt1200 is a compact and portable device that can be easily carried to different testing locations. It features a user-friendly interface and a large color touchscreen display, allowing for easy navigation and operation.

With its powerful processing capabilities, this test platform can perform a wide range of tests, including bit error rate testing, throughput testing, and latency testing. It also supports various testing protocols, such as RFC 2544, Y.1564, and ITU-T O.150.

The Rxt1200 is also equipped with advanced troubleshooting tools, such as packet capture and analysis, to help identify and resolve network issues quickly. It also has built-in optical power meters.

SOFTWARE

Advanced software architecture supports multiple test applications

VeExpress Cloud or Enterprise versions to maintain instrument firmware and manage test options or inventory

EZ Remote software for flexible remote control and software upgrade

Fiberizer Desktop+ PC software for advanced trace analysis and report generation

Fiberizer Cloud trace analysis and data management

VeSion R-server compatibility for centralized work force management and test results repository

Optional fiber inspection scope (USB) with single or multi-fiber (MPO/MTP) support

HARDWARE

High resolution, 7” full color TFT touch-screen viewable in any lighting condition

Connectivity via 10/100Base-T Management interface, WiFi, Bluetooth, or 3G/LTE for back office applications

Intelligent fan operation with built-in temperature sensor

Interchangeable Li-ion battery pack for extended test time

USB-A Interface for USB flash drives, USB wireless dongles and fiber inspection probe connection

Optional built-in GPS module for Geotagging OTDR traces

OPTICAL

CWDM wavelengths per ITU-T G.694.2 (8, 10, or 18 channels)

DWDM wavelengths per ITU-T G.694.1 (C-band, 1529.55 to 1563.86 nm, Channel #s 17-60) in 50, 100 or 200 GHz steps

Optional extended channel 14-62 available

TEC laser stabilization for hot and cold weather conditions

Built-in DWDM wavelength locker with ±2.5 GHz stability

Legacy wavelengths include 1310, 1550 and 1625 live testing

Sampling resolution up to 500,000 points

Event dead zone <0.85 m, attenuation dead zone <3.5 m

High dynamic range for long haul fibers and testing through xWDM Mux/demux

Telcordia GR-196 and SR-4731.sor file formats

Optional V-Scout mode – Smart Link Mapping using intuitive icons derived from multiple test acquisitions

Optional CWDM/DWDM/Legacy Light Source via OTDR port

Optional broadband Optical Power Meter

Optional VFL 650 nm light source

Built-in G.657A2 launch fiber to characterize OTDR connections and short fiber spans

Fixed connector or universal 2.5 mm optical interface with inter-changeable optical adaptors (SC/FC/LC)
